About This File

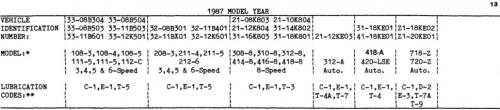

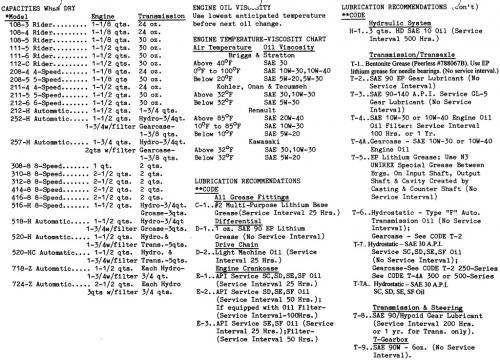

Lube chart SS

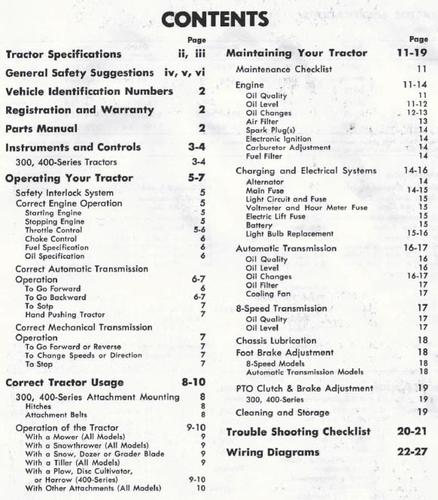

Index posted as a screen shot

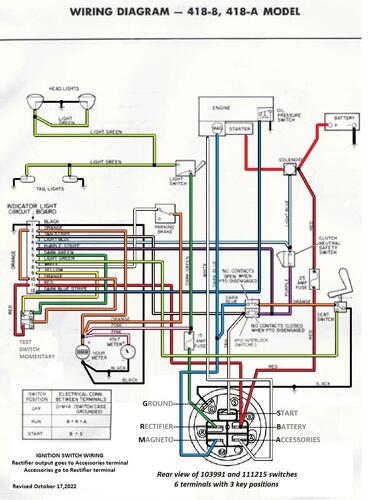

Some of the wiring diagrams have the wires reversed at the ignition switch Rectifier and Accessories terminals. Corrected on the color versions.
Operator manual #810473R1 or #810473 R1
Wiring
35 pages 11.08MB

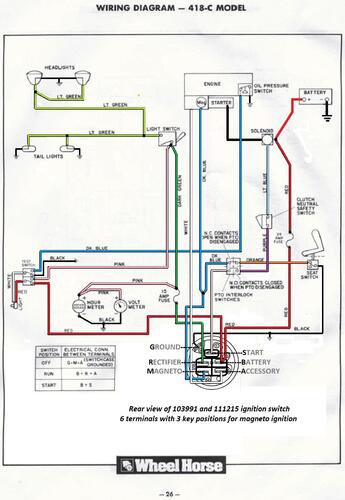

Wiring Color pdf
1 page 432KB
1987 IPL #810480R1 for all
Part 1 of 3
11 of 35 pages 3.96MB
Pages 1 to 4 (See screen shot of the index)
Part 2 of 3
12 of 35 pages 4.18MB
Pages 5 to 16 (See screen shot of the index)
Part 3 of 3
12 of 35 pages 2.94MB
Pages 16 to 27 (See screen shot of the index)
Note
Wiring diagrams not correct for 312, 414 and 416.
1987 414-8 model 31-14K802 with magneto ignition and 3 amp unregulated charging system
1987 416-8 model 31-16K803 with magneto ignition and 15 amp stator
1987 418-8 model 31-18K801 with magneto ignition and 15 amp stator
1987 418-A model 31-18KE01 with magneto ignition and 15 amp stator
1987 418-C model 41-18KE01 with magneto ignition and 15 amp stator
