About This File

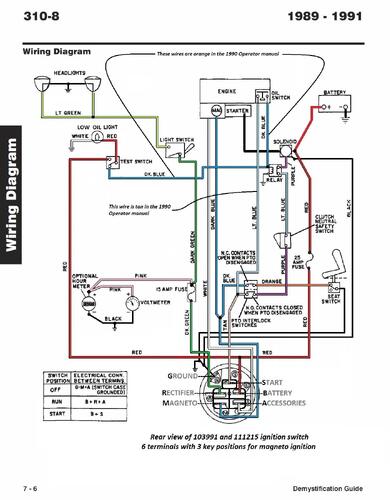

Wiring Detailed - 15 amp stator - Lights will work off the battery without the engine running. Color pdf
5 pages 1.6MB
p7-5 to p7-9
1990 operator manual diagrams show different wire colors for the low oil circuit.
1990 310-8 model 31-10K801
