About This File
Operator manual #A-5337
IPL
6 pages 1.04MB
Dated 8/72
CCW spindle rotation with left side discharge
Fits 8hp 4-speed with vertical shaft engine
Drive belt 8412 (1/2" x 86")
Spindle belt 8411 (1/2" x 76.94")

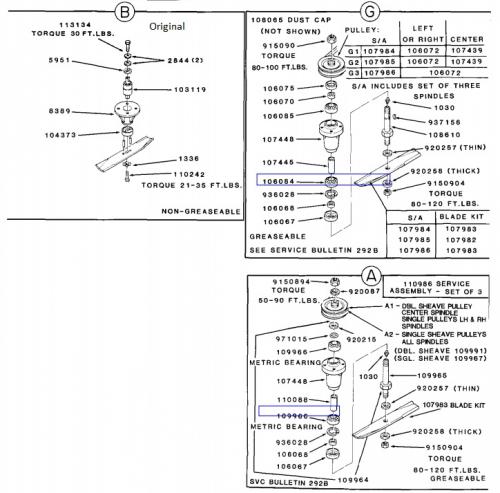

Mower spindle assemblies could be B, A1, G1 or Z
For A1 see service bulletin 292B
For G1 see service bulletin 292B
100460 center blade and 100459 left and right blades replaced by 101093 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1973 36in SD model 5-0702 CCW
Was still available in 1974 according to the price list
