Tractor 1969 Electro 12 D&A OM IPL Wiring Rev SN.pdf

Sign in to follow this

admin

9 Screenshots

About This File

Operator manual #1-7245
IPL
Wiring
16 pages 2.16MB - 1-7245
16 pages 1.88MB - 1-7245-P
Dated 6/20/68

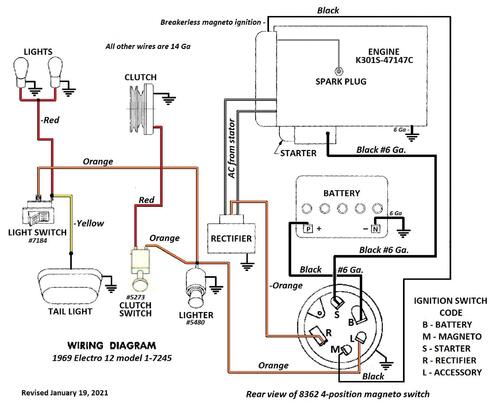

Wiring Color pdf

1 page 374KB


1-7245-P - Ammeter drawn in at the ignition switch

Terminals on 8362 magneto ignition switch may not be identified
1 page 126KB

5955 Sundstrand hydro pump gasket nla - 102759 gasket should work



Tractor drive belt # 7478 replaces # 4535 - (HB/5L x 84.22" or 5/8" x 84.22")



PSB #084 #102 #104 #126 #127 #128 #134 #437B #12
20 pages 507.72KB

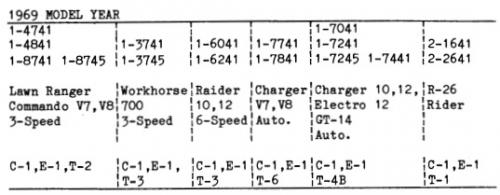

Lube chart SS



Details & Attachments
3 pages 115.75KB



1969 Electro 12 model 1-7245 - Uses Kohler K301S-47147c with breakerless magneto ignition

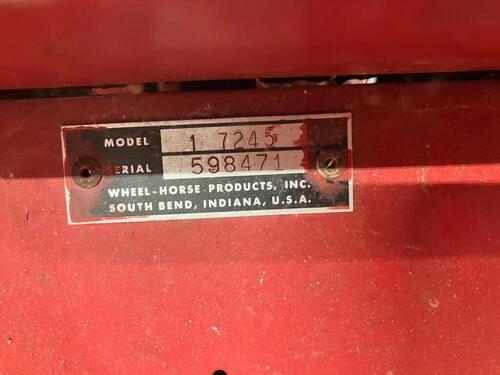

1969 serial numbers that have shown up for the 1-7245
521731
521757

542737
542883
542888

567538
587106
588402

598471
615059
