Tractor 1964 604 654 704 D&A OM IPL Wiring Rev SN.pdf

Sign in to follow this

admin

9 Screenshots

About This File

Operator manual #163-164-165
IPL
Wiring
8 pages 1.00MB
Dated 8/9/63

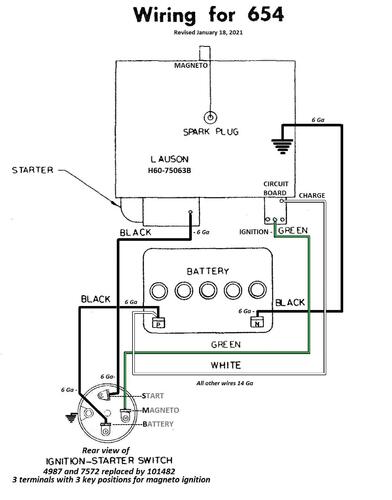

654 Wiring Color pdf

1 page 253KB

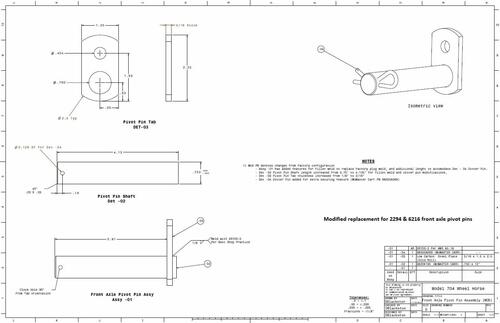

Modified 2294 replaced by 6216 front axle pin drawing pdf

1 page 100KB

Tractor drive belt for 604, 654 and 704 #9691 - 1/2" x 70"



Ignition switch for 654 is 4987 replaced by 101482

Models 604 and 704 have recoil starters

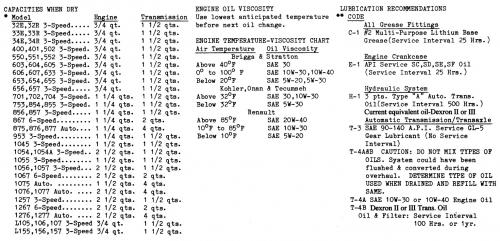

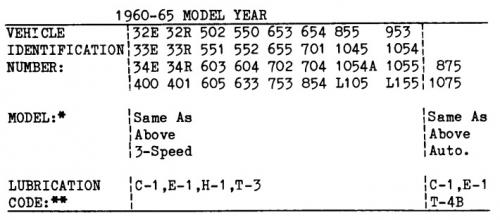

Lube chart SS



Details & Attachments
3 pages 114.50KB
1964 model 604
1964 serial numbers that have shown up for the 604

A-58657 - May be a 604
A-58686
A-59380
A-59523

A-59665
A-59894

A-60097
A-60109
A-60686 - May be a 654 or 704
A-61058 - May be a 654
A-64780
A-72142
007603
007841
007859
015197 - May be a 654 or 704
016817
016918 - Located in the UK
017079
017899
017903



Details & Attachments
3 pages 115.65KB
1964 model 654
1964 serial numbers that have shown up for the 654
A-59467
A-60686 - May be a 604 or 704
A-60820
A-60977
A-61049
A-61058
A-61185
A-61220

A-61463
A-73599 - Model a guess
A-73633
A-73645
004836
006459
006616
006687
006712 - Model a guess
007419

008713
008736
008822
015197 - May be a 604 or 704
015561
017845

018195

018225 - Model number a guess

018929 - Model number a guess

Details & Attachments
3 pages 115.67KB

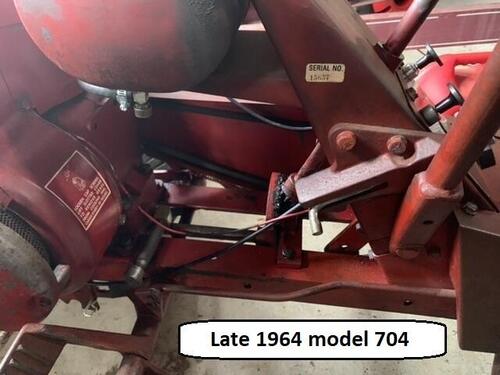

1964 model 704

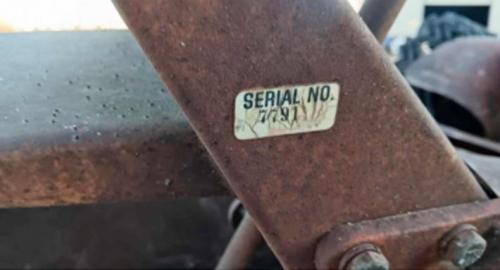

1964 serial numbers that have shown up for the 704
A-50086
A-51977
A-59856
A-60180

A-60381
A-60437
A-604xx
A-60686 - May be a 604 or 654

A-72169

A-73091 - Model number a guess
006013

006139

007670
007788
007807
008090
008147
008526
015197 - May be a 604 or 654

015657
015771
015898
016122
017169
018273 - Located in Cambridgeshire
