About This File
Operator manual #A-7137
IPL 6 pages 2.7MB
Kit 6058 1 page 264.28KB
Kit 6060 2 pages 484.69KB
Kit 6069 1 page 329.82KB
Service bulletins 9 pages 1.56MB
19 pages 4.48MB
Fits 10hp and 12hp tractors
Drive belts 5950 (1/2" x 28.4" matched pair)
Spindle belt 1599 (1/2" x 139")
Drive belt with 6069 kit added 7041 (1/2" x 72")
Spindle belt with 6069 kit added 6738 (1/2" x 86")

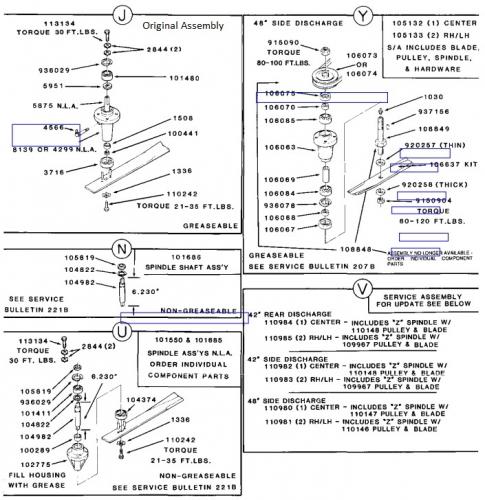

Mower spindle assemblies could be J, N, U, V, X or Z
For N and U see service bulletin 221B
For X and V see service bulletin 207B
5879 blade replaced by 100201 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1965 42in SD model RM-425
1965 serial numbers that have shown up for the RM-425
143900 thru 144660 include 6058 kit - See PSB #66
144661 thru 145899 includes 6058 kit and 6060 kit - See PSB #66
144847
146080
146456
146903 thru 147399 includes # 6058 kit - See PSB #66
147085
147399
