About This File
Wiring Detailed 492-4207
Single-cylinder Detailed Wiring Revised Color pdf
4 pages 1.4MB

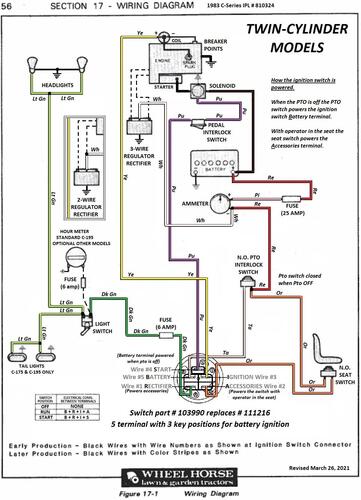

Twin-cylinder Detailed Wiring Revised Color pdf
4 pages 1.4MB
1983 C- 85 8-Speed model 11-08K801
1983 C-105 8-Speed model 11-10K801
1983 C-125 8-Speed model 11-12K801
1983 C-145 Automatic model 01-14KE04
1983 C-175 Twin 8-Speed model 11-17K801
1983 C-175 Twin Automatic model 01-17KE03
1983 C-195 Twin Auto model 01-19KE01 - Not listed @ Toro for 1983, 1982 only
How the ignition switch gets battery power.
When the pto is OFF the pto switch powers the Battery terminal of the ignition switch.
With operator in the seat the seat switch powers the Accessory terminal of the ignition switch.
There is no direct connection to the battery.
