Tractor 1967 857 D&A OM IPL Wiring Rev SN.pdf


admin

6 Screenshots

About This File

Operator manual #A-5090
IPL

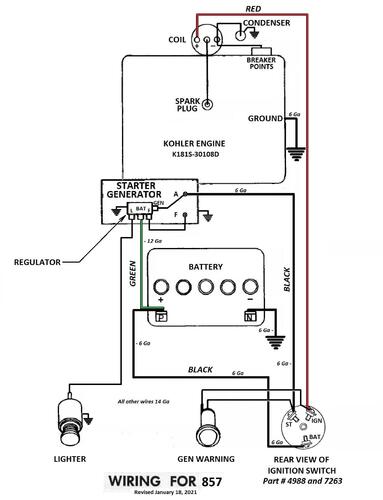

Wiring
12 pages 2.01MB



Wiring Color pdf

1 page 296KB

Tractor drive belt for 857 #9691 - 1/2" x 70"

Gates 6870

Napa 4L700W



Starter/Generator belt
Original Wheel Horse 1583 nla Used on 6, 7, 8hp Kohler Starter generator {3Lx33" in belt charts is 3/8" x 33" but some applications use a shorter belt. Belt should have raw rubber sides for grip.}
3V315 Gates .38"x31.5"
3V315 Napa .38"x31.5"



Kohler #231605 Starter generator belt Replaces 232613 [.41"x32.08" 36 degree] PSB #061 Should use raw rubber edge belt for grip
7315 Gates .41"x32.08" 36 degree
25-7315 Napa .41"x32.08" 36 degree



Small Block Kohler Napa # 25-7320 .41" wide x 32.5" long Side angle 36 degrees Cross section HC41



Original ignition switch 4988 replaced by 7263
No decal on belt guard. Indentation was dropped on 4993 guard in 1967



Last line of the parts list is missing

Item 139 - 920127-4 Lockwasher 9/16

Item 186 - 6998 Decal Grille

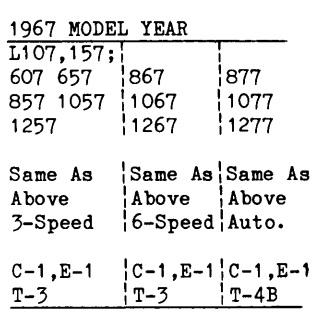

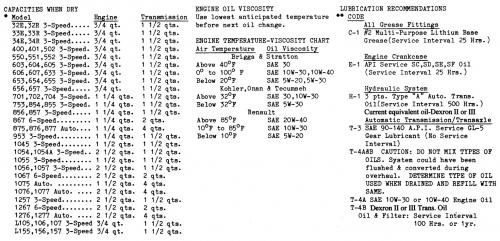

Lube chart SS



Details & Attachments
3 pages 114.91KB
1967 model 857

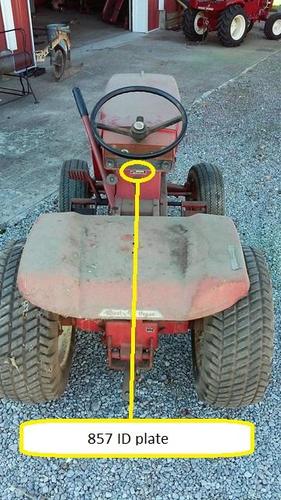

1967 serial numbers that have shown up for the 857

266108
266307
266388
266526
266622
266896
266949
284035
284158
290859
290869
29116x
291215

306554
306723
306820
307114
307220
307426
307477
325035
325050
325396
325402

333992

336561 - Located in UK

336677
336700
336833
336998

372790
372875
