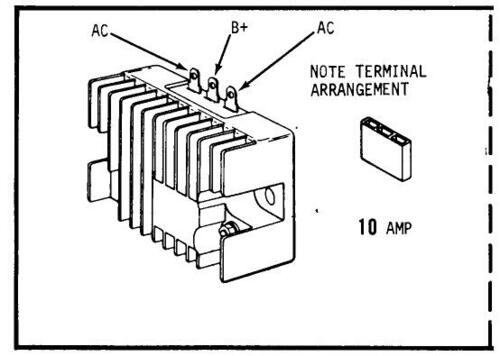

Regulator Rectifier Tecumseh 10 amp large 3-wire
The 10 amp voltage regulators were supplied with the engine so are not in the tractor parts lists.
Tecumseh 610749
Kohler 234279 and 4140308
Stens replacement 435-086
You can use a 15 amp regulator to replace a 10 amp regulator but the terminal locations are different.
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
101436 Regulator Rectifier used on
1971 models 1-0300*, 1 -0310
1974 models 1 -0353, 1 -0354, 1 -0356, 1 -0380, 1-0385*, 1-0390, 1 -0480, 1 -0485, 1 -0490, 1-0495*, 1 -0510
1975 model 1-0357*
