About This File

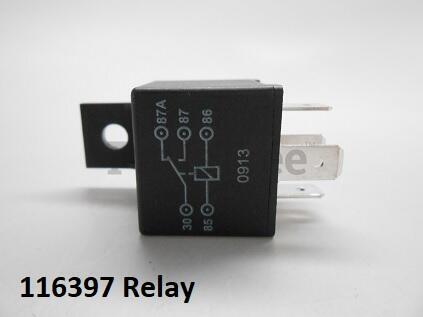

116397 relay used 1989-1998 and replaces 116379 and 48-4700
116379 relay used 1992-1993 and most likely a typo for 116397
48-4700 relay used 1994-1998
106833 3-terminal relay replaced by a 5 terminal substitute in production because of a parts shortage.
These were replaced by SA121378 service assembly which was replaced by 99-5365 kit.
The 99-5365 kit contained a 48-4700 relay which has been replaced by 116397 relay.
116397 relay used on 1990 300-Series for the low oil starter circuit and 1990 200-Series, 400-Series and 500-Series as a starter relay.
Picture only jpg
1 page 10KB
82-12o502* - Correct and tractor series
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
116397 Start relay used on
1989 model Y1 -16OE01
1990 models 31 -10K801, 31 -12K801, 31 -12KE01, 31-16O802*400, 32 -10B501, 32 -10BE01, 32-12O501*200, 32-12OE01*200, 32-16BE01, 41-16OE01*400, 41-20O801*500, 41-20OE01*500, R1 -12K802, R1-16O802*300, R1-18OE02*500, Y1-12OE01*Z, Y1-16OE02*Z, Z1-24OE03*Z
1991 models 22-14O501*200, 22-14OE01*200, 31 -10K802, 31 -12K802, 31-16O803*400, 32-10B502*200, 32-10BE02*200, 32-1205A1*200, 32-12OEA1*200, 32-12O502*200, 32-12OE02*200, 41-20OE02*500, 51 -12KE01, 51-16OE01*400, R2-12O501*200, R2-12OE01*200, S2-12B502*200, Y1-12OE02*Z, Y1-16OE03*Z, Y1-20OE02*Z, Z1-27OE04*Z
1992 models 22-14O502, 22-14OE02, 31-10K803, 31-10K804, 31-16O804, 32-10B503, 32-10BE03, 32-12O503, 32-10OE03, 41-20OE03, 42-16BE01, 51-12KE02, 51-16OE02, R1-12K804, R1-16O804, R1-20OE02*, R2-12O502, R2-12OE02, R2-16BE01, Y1-16OE04*Z, Y1-16OEE4*Z, Y1-20OE03*Z, Z1-24OE05*Z
------------------------------------------Models below may not use this start relay----------------------------------------------
1993 models 70040, 70042, 70060, 70080, 70120, 70140, 71140, 71180, 71181, 71200, 71202, 71203, 72040, 72041, 72060, 72081, 72101, 73320, 73380, 73400, 73401, 73420, 73421, 73440, 73501, 73520*, 74021, 74041, 74101, 74140
1994 models 71182, 71184, 71191, 71200, 71202, 71213, 72042, 72043, 72062, 72063, 72083, 72103, 73362, 73380, 73400, 73401, 73420, 73421, 73440, 73501, 73520, 74021, 74041, 74101, 74120
1995 models 71182, 71184 x 2, 71191 x 2, 71192, 71200, x 2, 71202, 71205, 71213 x 2, 71216, 72042 x 2, 72043 x 2, 72062 x 2, 72063 x 2, 72084, 72103 x 2, 73362, 73400, 73401 x 2, 73420 x 3, 73421 x 2, 73440 x 2, 73501 x 4, 73520 x 2, 74021, 74101, 74120
1996 models 70060, 70081, 70131, 70142, 70183, 71182, 71184, 71185, 71188, 71191, 71192, 71193, 71196, 71201, 71205, 71217, 71218, 72042, 72043, 72045, 72046, 72062, 72064, 72084, 72085, 72102, 72104, 72110, 73362, 73363, 73400, 73401, 73402, 73403, 73420, 73421, 73422, 73423, 73441, 73501, 73502, 73521
1997 models 70060, 70081, 70131, 70142, 70183, 71185, 71188, 71189, 71190, 71193, 71196, 71201, 71205, 71208, 71215, 71217, 71218, 71219, 72045, 72046, 72064, 72085, 72102, 72104, 72110, 73363, 73402, 73403, 73422, 73423, 73441, 73502, 73521
1998 models 70041, 70060, 70082, 70084, 71185, 71188, 71189, 71190, 71196, 71201, 71208, 71215, 71218, 71219, 72045, 72045, 72046 x 2, 72064 x 2, 72085 x 2, 72102 x 2, 72104 x 2, 72110 x 2, 73428 x 2, 73448 x 2
116379 Relay most likely a typo
1992 model R1-20OE02 (Original parts list shows 116397 so a typo was made somewhere)
1993 model 73520 (Original parts list shows 116397 so a typo was made somewhere)
48-4700 Relay used on
1994 models 70040, 70060, 70100, 70141, 74140
1995 models 70040, 70060, 70141, 70142, 74140
1996 model 70040
1997 model 70040 x 2
1998 model 70040
