About This File
Switch Rocker Cole-Hersee

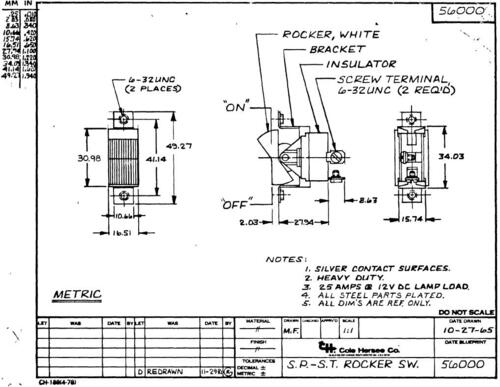

56000-Series of switches drawings
40 pages 1.5MB

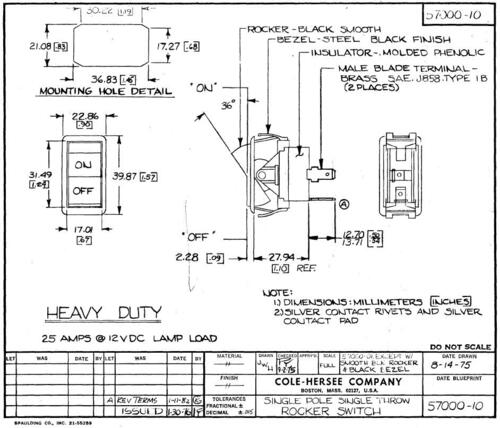

57000-Series of switches drawings
15 pages 3.5MB
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet

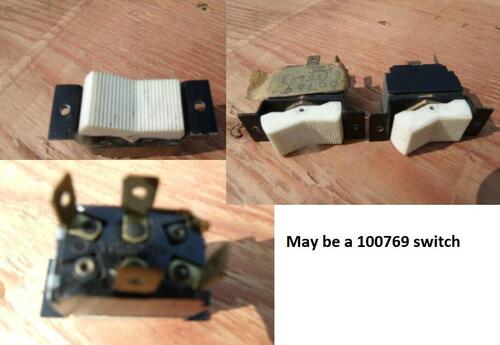

Rocker switch 8565 replaced by 100769 used for pto clutch 1969-1973 ( DPDT )

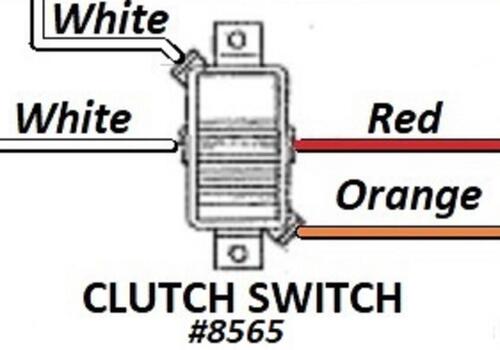

8565 used on
1969 model 1-7441*
1970 model 1-7451*

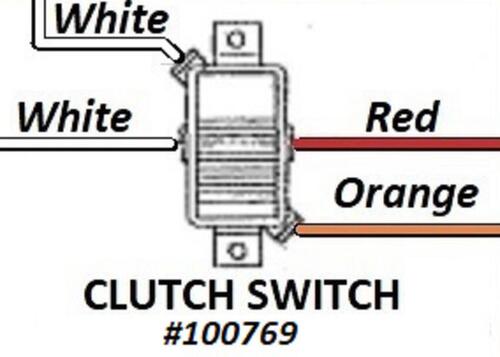

100769 used on
1970 models 1-7452*, 1-7453*
1971 models 1 -0100, 1-0500*, 1-0501*
1972 models 1-0502*, 1-0503*
1973 model 1-0503-8*
