About This File
Operator manual #803975 Dated 7-74
5 pages 1.03MB

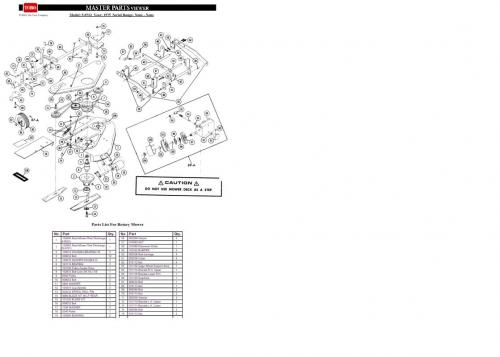

IPL from Toro Master Parts Viewer
2 pages 181.28KB
CW spindle rotation
Notice the illustrations and model numbers for the mower decks are reversed in the operator manual
Fits long frame tractors
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for C-Series tractors (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")

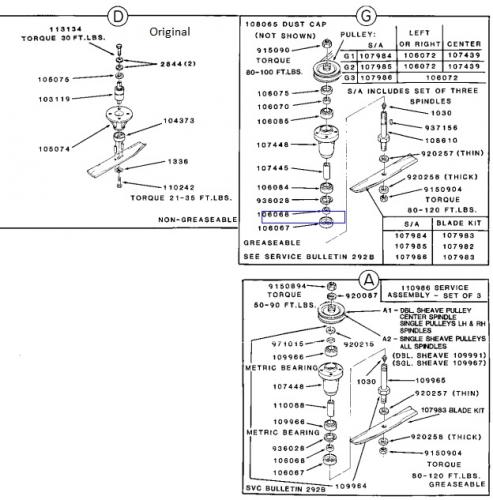

Mower spindle assemblies could be D, A1, G1 or Z
For A1 and G1 see service bulletin 292B
Blades
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1975 36in SD model 5-0722
1975 serial numbers that have shown up for the 5-0722
71514
