About This File

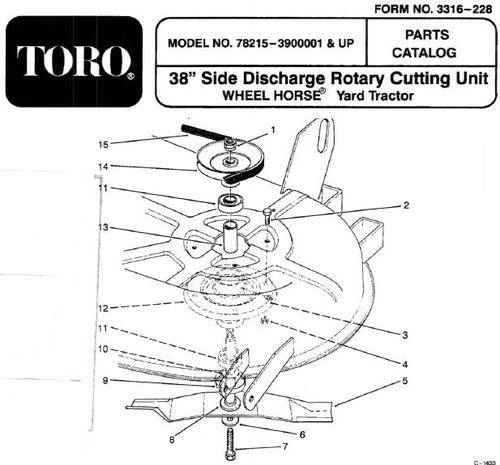

Illustrated parts list #3316-228
4 pages 949KB
1993 Mower drive and spindle belt 79-5980 $35.53 at Toro (1/2" x 81.80")
1994 Mower drive and spindle belt 92-7066 $80.45 at Toro (Aftermarket replacements listed as 1/2" x 82")
Blades
Toro 2 of 57-4700 replaced by 57-4700-03 - 5/8" hole 19-5/16" long
Napa 2 of # 7-06445
Oregon high-lift 2 of # 94-038
Oregon Gator Mulcher 2 of # 94-902
Oregon Gator Mulcher 3in1 2 of # 94-602
Fits 244-5, 244-H and 246-H
Can be equipped with 86032 recycliner kit
Mower Rotary 38in SD 1993 model 78215 Serial 3900001-3999999
