Snowthrower 26in Walk behind 1969-1972 5hp 4-2636 D&A TPL sn.pdf 1.0.0

Sign in to follow this

gwest_ca

4 Screenshots

About This File

Details - 1 page for each year

Parts list from Toro Master Parts Viewer - 3 pages for each model but no thrower illustration



4-2636 drive belts

Impeller belt 6506 (4L x 31.91" or 1/2" x 31.91") [Gates 6832]

Reverse belt 6552 (3L x 30.07" or 3/8" x 30.07") [Gates 6730]

Transmission belt 6551 (3L x 30.5" or 3/8" x 30.5") [Gates 6731]



Snowthrower 1969 Trailblazer 5 model 4-2636

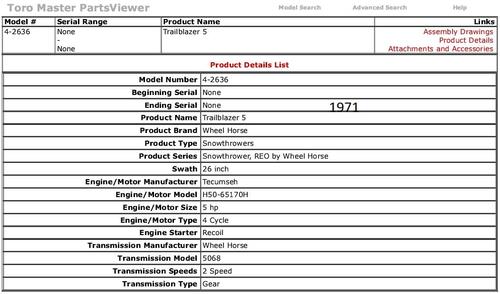

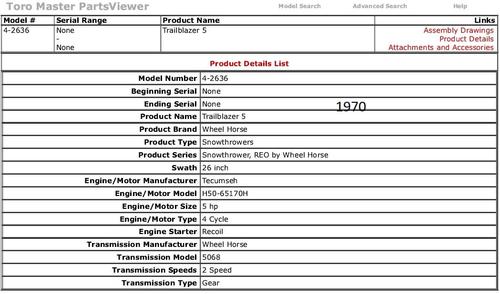

Snowthrower 1970 Trailblazer 5 model 4-2636



Snowthrower 1971 Trailblazer 5 model 4-2636

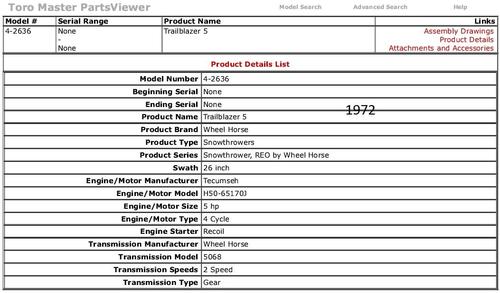

Snowthrower 1972 Trailblazer 5 model 4-2636




×
×
