About This File
56000-Series of switches drawings
40 pages 1.5MB
57000-Series of switches drawings
15 pages 3.5MB
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet

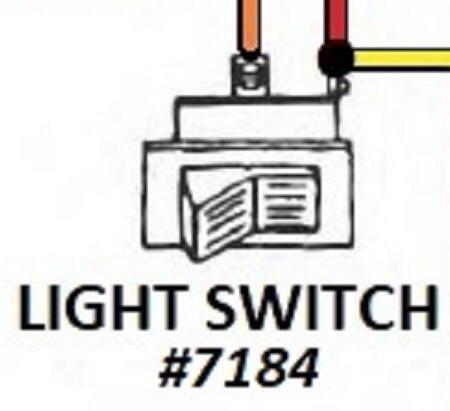

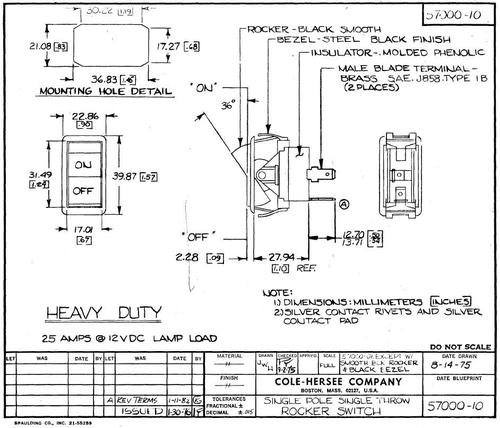

Wheel Horse rocker switch 7184 used for headlamps 1965-1970 ( SPST ) - Cole-Hersee 57000-01-BX
7184 used on
1965, 1966 and 1967 model LP-70* (Light kit)
1967 models 867*, 1067*, 1267*
1968 models 1-6231*, 1-6931*, 1-7231*, 1-7235*, 1-7931*, 1-7932*, 8-0811* light kit
1969 models 1-6041*, 1-6241*, 1-7041*, 1-7241*, 1-7245*
1970 models 1-6051*, 1-6251*, 1-6252*, 1-6253*, 1-7251*, 1-7252*, 1-7253*, 1-7255*, 1-7851*

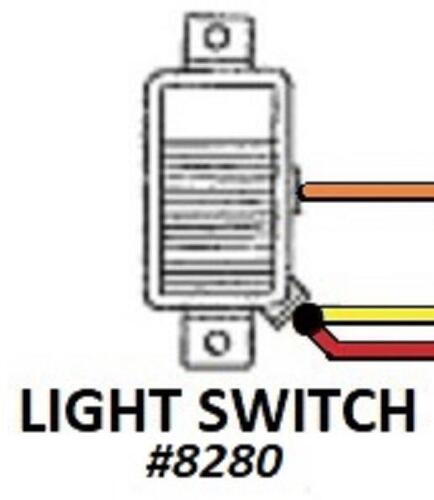

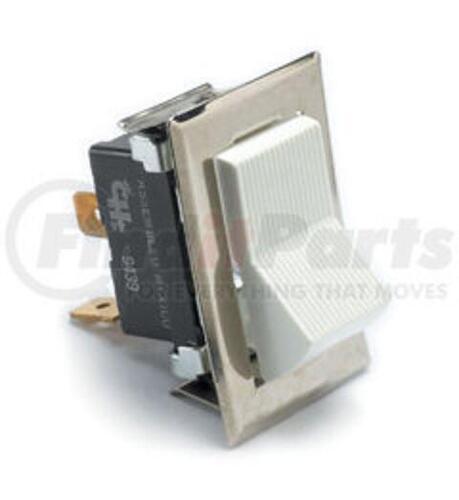

Wheel Horse rocker switch 8280 replaced by 100768 used for headlamps 1969-1973 ( SPST )
8280 used on
1969 model 1-7441*
1970 model 1-7451*

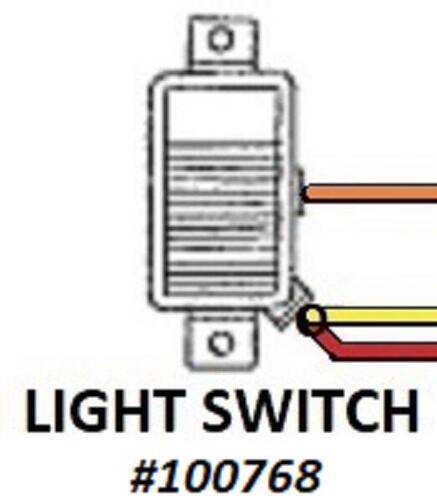

100768 used on
1970 models 1-7452*, 1-7453*
1971 models 1 -0100, 1 -0150, 1-0300*, 1-0310*, 1-0450*, 1-0500*, 1-0501*
1972 models 1 -0451, 1-0502*, 1-0503*
1973 model 1-0503-8*
