About This File

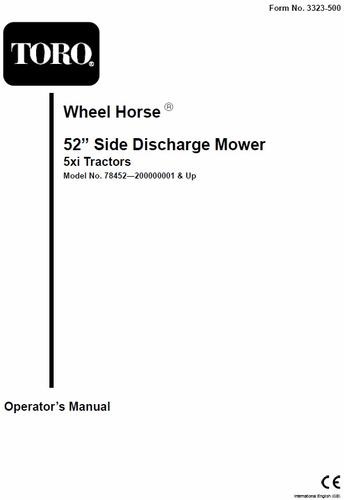

Operator manual #3323-500
28 pages 923KB

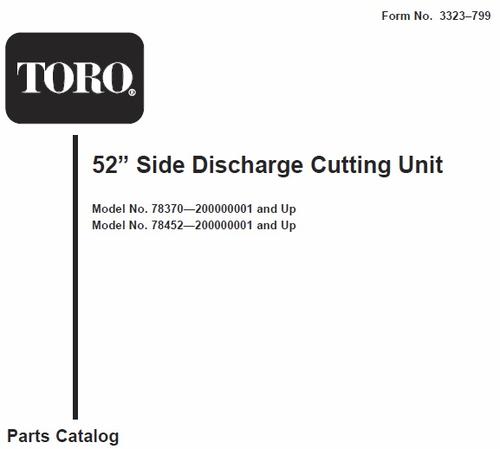

Illustrated parts list #3323-799
12 pages 372KB
Fits 5xi tractors - Low cut mower
Drive belt 95-4094 (HB x 96.72" or 5/8" x 96.72")
Spindle belt 102742 replaced by 94-2501 (1/2" x 103") [Napa 6378 (1/2" x 103.25")]
Mower blades 3 of 27-0990 - 18"
Mower Rotary 2000 52in SD model 78452 Serial 200000001-200999999 - Export model
2000 serial numbers that have shown up for the 78452
200000250 - Located in Bavaria
