About This File
Wiring Detailed from the Demystification Guide #492-9137
11 pages 760.14KB
p5-1 to p5-11

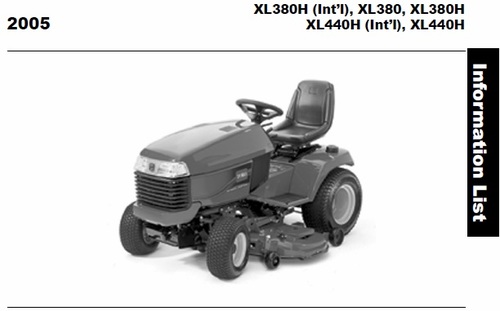

2005 XL 380 XL-Series Lawn Tractor model 71427 Recycler Serial 250000001-250999999
2005 XL 380H XL-Series Lawn Tractor model 71428 Recycler Serial 250000001-250999999
2005 XL 380H XL-Series Lawn Tractor model 71246 Recycler Serial 250000001-250999999 - Export model
2005 XL 380He XL-Series Lawn Tractor model 71246 Recycler Serial 250000001-250999999 - Export model
2005 XL 440H XL-Series Lawn Tractor model 71429 Recycler Serial 250000001-250999999
2005 XL 440H XL-Series Lawn Tractor model 71286 Recycler Serial 250000001-250999999 - Export model
2005 XL 440He XL-Series Lawn Tractor model 71286 Recycler Serial 250000001-250999999 - Export model
