Tractor 1998 265-6e Wiring Detailed Rev.pdf 1.0.0

Sign in to follow this
Followers 0
gwest_ca

By gwest_ca-(File Mod)

2 Screenshots

About This File

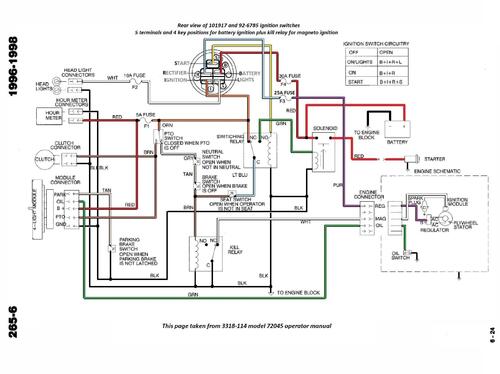

Detailed wiring from the Demystification Guide #492-4509

5 pages 1.3M color pdf

p6-23 to p6-27



1998 265-6 model 72045 Serial 8900001-8999999 - Export model 265-6e
