Tractor 1988 312-8 Wiring Detailed Rev.pdf 1.0.0

Sign in to follow this

gwest_ca

3 Screenshots

About This File

Detailed wiring from the Demystification Guide #492-4509 Revised April 30, 2020

5 pages 1.7MB Color pdf

Pages p7-33 to p7-37

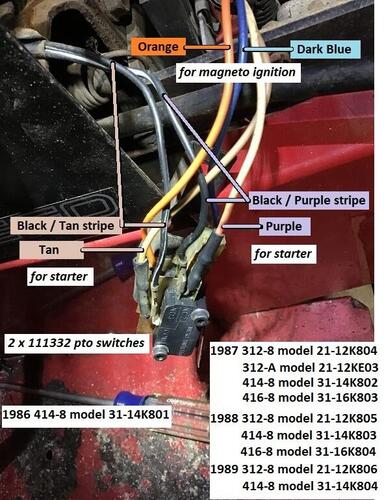

Pto switch wiring photo

1 page 198KB



Magneto ignition and 15 amp stator

Low oil switch



1988 312-8 model 21-12K805



1988 312-8 model E1-12K801 Export model 312-8e




×
×
