About This File
114240 seat switch replaced by 112418
($34.09 May 22, 2020)

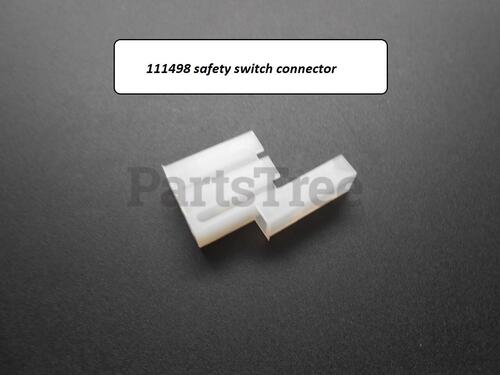

White wire connector part number 111498 ($3.01 May 22, 2020) used with 114240 and 112418 switches.
Same as used with the 111332 pto switches.
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet

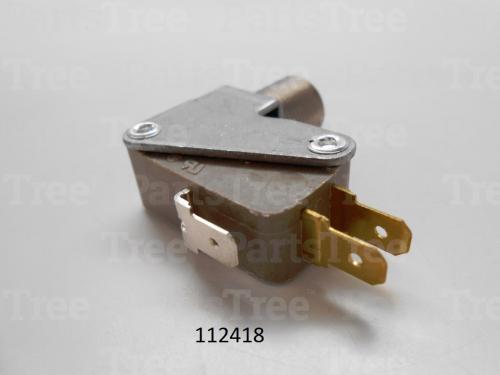

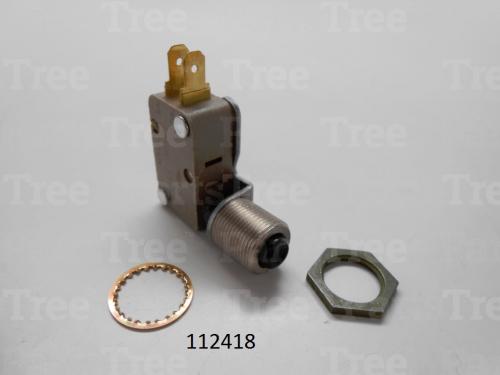

112418 push-button seat switch used on
1987 models 21-08K803, 21-10K804, 21-12K804, 21-12KE03, 31-14K802, 31-16K803, 31-18K801, 31-18KE01, 32-08B501, 32-11B301, 32-11B401, 32-11B501, 32-11BX01, 32-12K601, 41-18KE01
112440 push-button seat switch used on
1988 models 21-08K804, 21-10K805, 21-12K805, 22-13KE01, 22-17KE01, 31-14K803, 31-16K804, 31-16OE01, 31-18OE01, 31-20OE01, 32-08B402, 32-11B402, 32-11BX02, 32-12K602, B1-16O801, C1-20OE01, E1-12K801, E1-18OE01, E2-09K401, E2-12K501, E2-13K501, E2-17K501, F2-09K401, F2-12K501, Z1-24OE01
1989 models 21-10K806, 21-12K806, 22-13KE02, 22-17KE02, 31-14K804, 31-16O801, 31-18OE02, 31-20OE02, 32-11B403, 32-12B501, 32-12BE01, 42-08B401, 42-11B501, B1-16O802, C1-20OE02, E1-12K802, E1-18OE02, E2-12K502, E2-12KE01, E2-17K502, R2-12K501, R2-12KE01, S2-12K501, Z1-24OE02
1990 models 31-10K801, 31-12K801, 31-12KE01, 31-16O802, 32-10B501, 32-10BE01, 32-12O501, 32-12OE01, 32-16BE01, 41-16OE01, 41-20O801, 41-20OE01, R1-12K801, R1-12K802, R1-16O801, R1-16O802, R1-18OE01, R1-18OE02, R2-17K501, R2-17K502
1991 models 31-10K802, 31-12K802, 31-16O803, 32-12O5A1, 32-12OEA1, 32-12B5A2, 32-12B5A3, 32-12BEA2, 32-12BEA3, 41-20OE02, 51-12KE01, 51-16OE01, A2-12K501, A2-12KE02
