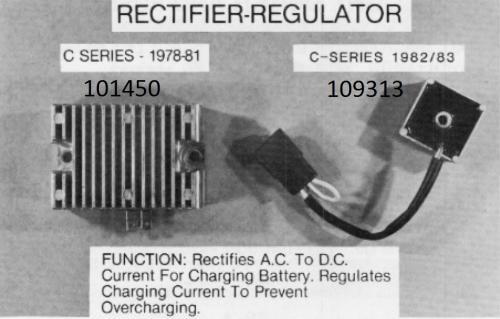

Regulator Rectifier 15 amp

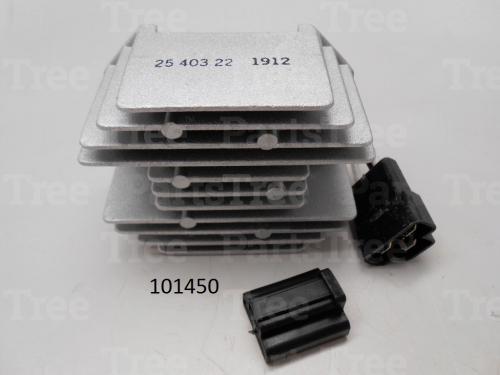

101450 used 1978-1981
Kohler 237335, 2540322 and 4140306

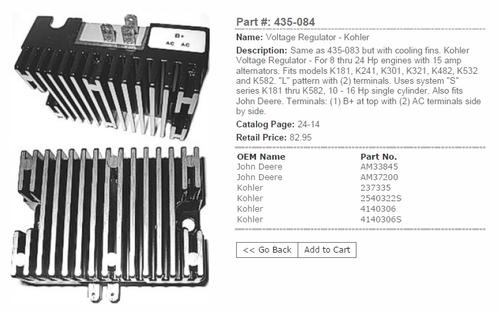

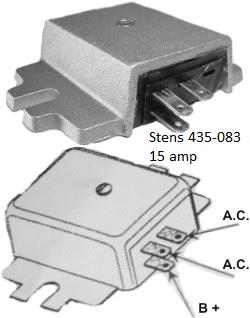

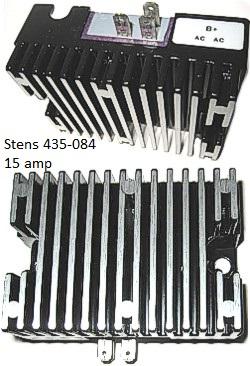

435-084 Stens replacement available from Banta Saw in Canada. They will ship to Europe. Same as 435-083 which has no fins
The 10 amp voltage regulators were supplied with the engine so are not in the tractor parts lists.
Tecumseh 610749
Kohler 234279 and 4140308
Stens replacement 435-086

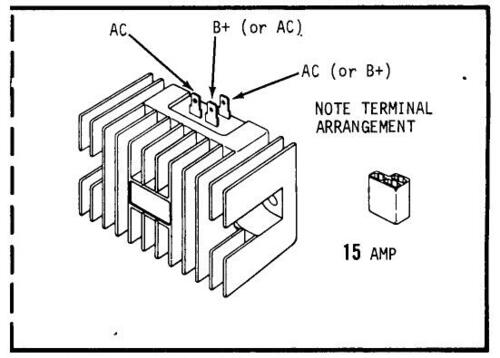

You can use a 15 amp regulator to replace a 10 amp regulator but the terminal locations are different.
Voltage regulator part number 101405 was the regulator for the Starter/Generator.
Used on the following models
1971 800 Special model 1-0150
1971 800 Automatic model 1-0450
1972 800 Automatic model 1-0451
1974 A-90 Special model 2-4300
