About This File
Clutch pedal and neutral switches taken from #492-4207 Electrical Service Manual
Similar to 110970

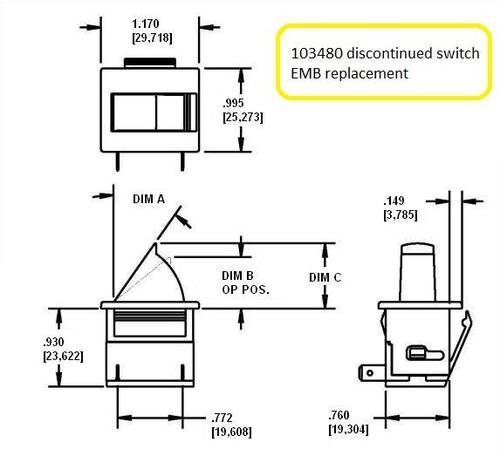

103480 Rocker switch NO=Normally open
No longer available from Toro
EMB was the supplier http://www.embcorp.com/products.html
Modification kit 100-3536 which includes a 103480 switch is still available from Toro September 3, 2021
Link to Service bulletin GT44
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
103480 Rocker switch used on
1973 models 2-0102, 2-0112
1974 models 1-0280, 1-0285, 2-4300, 3-0113
1975 models 1-0281, 1-0282, 1-0286, 1-0287, 3-0114
1976 models 62-08BP01, 62-10BP01
1977 models 72-08BP01, 72-10BP01
1978 models 82-08BP01, 82-11BP01
1979 models 92-08BF01, 92-11BF01, 92-11BP01
1980 models 02-08BP01, 02-11BP02, 02-11BX01, 02-16BP01
1981 models 02-08BP02, 02-08BP03, 02-11BP03, 02-11BP04, 02-11BX02, 02-11BX03, 02-16BP02, 02-16BP03
1982 models 01-08K803, 01-10K803, 01-12K803, 01-14KE03, 01-17K803, 01-17KE02, 01-19KE01, 02-08BX01, 02-11BE01, 02-11BH01, 02-11BP05, 02-16BE01, 02-16BP04, A1-114201, A1-164201, A1-184801, A2-083201, A2-103201, A2-113701, A2-163701, A2-164201
1983 models 01-14KE04, 01-17KE03, 11-08K801, 11-10K801, 11-12K801, 11-17K801, 12-11BE01, 12-11BP01, 12-16BE01, 12-16BP01, A1-114202, A1-164202, A2-083202, D1-184801, D2-113601, D2-113701, D2-163701
1984 models 01-19KE02, 11-10K802, 11-12K802, 11-14KE01, 11-16K801, 11-17KE01, 12-11BP02, 12-16BE02, A1-11B801, A1-16B801, A1-18BE01, A2-11BP01, A2-11BX01, A2-16BP01, B2-11BX91
1985 models 33-08BP01, 33-11BP01
1986 models B1-12R801, C1-12R801
1989 models B1-16O802, E1-12K802
1990 models 31-10K801, 31-12K801, 31 -12KE01, 31-16O802, 41-16OE01, R1-12K801, R1-12K802, R1-16O801, R1-16O802
1991 models 31-10K802, 31-12K802, 31-16O803, 51-12KE01, 51-16OE01
1992 models 31-10K803, 31-12K804, 31-16O804, 51-12KE02, 51-16OE02, R1-12K804, R1-16O804
1993 models 73320, 73380, 73400, 73420, 73440
1994 models 73362, 73380, 73400, 73401, 73420, 73440
1995 models 73362, 73400, 73401, 73420 x 3, 73440 x 2
1996 models 73362, 73363, 73400, 73402, 73420, 73422, 73423, 73441
1997 models 73363, 73402, 73403, 73422, 73423, 73441
106768 Neutral push-button replaced by 107635 Push button switch with wire leads NO=Normally open
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
106768 Neutral push-button switch used on
1978 models 81-08K801, 81-10K801, 81-12K801, 81-12KS01, 81-14K801, 81-14KS01, 81-16B801, 81-16BS01, 81-16K801, 81-16KS01
1979 models 91-08K801, 91-10K801, 91-12K801, 91-14K801, 91-16B801, 91-16BS01
107635 Neutral push-button switch used on
1979 models 91 -08K802, 91 -10K802, 91 -11B801, 91-11BS01*, 91 -12K802, 91-12KS01*, 91 -14K802, 91-14KS01*, 91 -16B802, 91-16BS02*, 91 -16K801, 91-16KS01*
1980 models 01-08K801, 01-10K801, 01-12K801, 01-12KE01, 01-12KS01, 01-14K801, 01-14KE01, 01-14KS01, 01-16K801, 01-16KE01, 01-16KS01, 01-17K801, 01-17KE01, 01-17KS02
1981 models 01 -08K802, 01 -10K802, 01 -12K802, 01-12KE02*, 01 -14K802, 01-14KE02*, 01 -16K802, 01-16KE02*, 01 -17K802, 01-17KE01*
