Magneto ignition with electric starter switch 1752 - Used on 1962 model 552 only which I believe is a typo in the ipl
Starter push-button 1751 powers the starter circuit
(Threads ?) ?-terminal switch using 3668 2-prong forked key
----------------------------------------------------------------------------------------------------------
Ignition Magneto ignition with recoil start 7596
(Threads 9/16"-24)

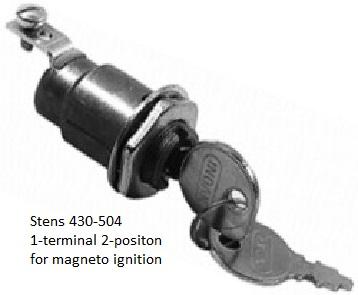

1-terminal 2-position keyed ignition switch
7596 1-terminal 2-position nla
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
7596 Magneto ignition switch with recoil start used on
1968 model 1-3631*
1969 models 1-3741*, 1 -3745
-------------------------------------------------------------------------------------
108757 Magneto ignition switch with recoil start used on
(Threads 5/8"-32)
108757 2-terminal 2-position keyed - nla
1980 models
03-05BP01*
03 -08BP01 ES in PSB301e
03-08XP01 RS in PSB301e*
03 -11BP01 ES in PSB301e
1981 models
03-05BP02 RS in PSB301e*
03 -08BP02 ES in PSB301e
03 -11BP02 ES in PSB301e
1982 models
23-05BP01 RS in PSB301e
23-08BP01 ES in PSB301e
23-11BP01 ES in PSB301e
23-11BX01 ES in PSB301e
A3-053201 RS in PSB301e
A3-083201 ES in PSB301e
1985 models
33-08B301 ES in PSB301g
33-08B501 ES in PSB301g
33-08X301
33-11B501 ES in PSB301g
33-08BX01 RS in PSB301g
1986 model 33-08BX03 RS in PSB301g
-------------------------------------------------------------------------------------------
111320 Magneto ignition switch with recoil start used on
Still available from Toro Dec. 19, 2016
Appears to be used on the 100-Series in 1986
1986 models 33-08B303* for RS, 33 -08B502* for RS, 33-08X303* for RS, 33-11B502* for RS, B3-08B303* for RS, B3-11B502* for RS
-----------------------------------------------------------------------------------------------------------------
225096 Magneto ignition switch with recoil start used on - nla
1976 model 63-05BF01*
1977 model 73-05BF01*
--------------------------------------------------------------------------------------------
225190 Magneto ignition switch with electric start used on - nla
1976 model A-90 model 63-08BP01*
