About This File

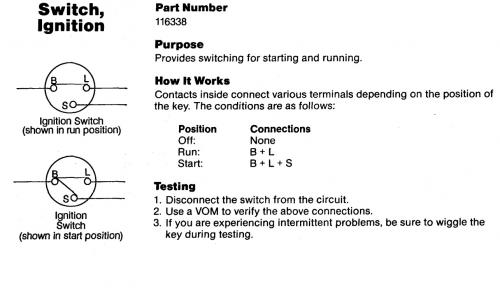

1 page 163KB from Demystification Guide #492-4509

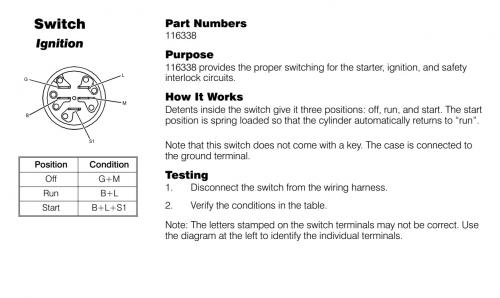

1 page 161KB from Demystification Guide #492-3203
Switch turned over to place START terminal at the top
1 page 167KB
How to troubleshoot
Note on the switch description page - The switch terminals may not be properly identified.
116338 switch ($50.46 May 22, 2020)
5-terminal 3-position key switch for magneto ignition
This switch requires a starter solenoid
--------------------------------------------------------------------

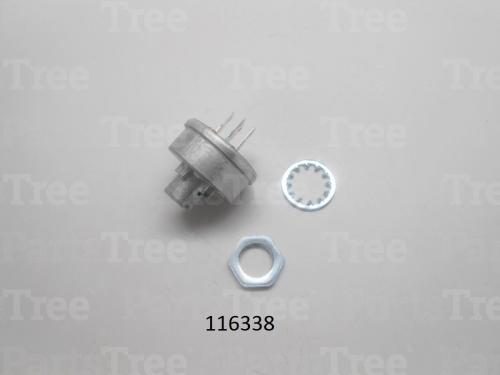

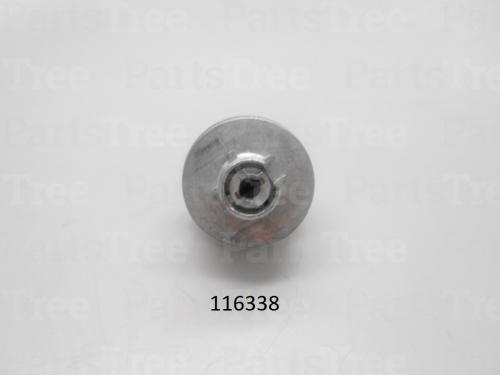

Tractor Switch Ignition Magneto ignition with electric start 116338
(Threads 5/8"-32) 5-terminal 3-position switch
116338 5-terminal 3-position available 08/08 $23.80 from RCPW
Used 1991 thru 1997
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
116338 Magneto ignition switch used on
1991 models 22-14O501*, 22-14OE01*, 32 -10B502, 32 -10BE02, 32-12O502*, 32-12OE02*, R2-12O501*, R2-12OE01* *****
1992 models 22-14O502*, 22-14OE02*, 31-10K803*, 31-12K804*, 31 -16O804, 32 -10B503, 32 -10BE03, 32-12O503*, 32-12OE03*, 42-16BE01*, 51-12KE02*, 51 -16OE02, R1-12K804*, R2-12O502*, R2-12OE02*, R2-16BE01* *****
1993 models 72040*, 72041*, 72060*, 72081*, 72101e*, 73320*, 73380*, 73400*, 73401*
1994 models 73362*, 73380*, 73400*, 73401*, 7 3420, 7 3440 *****
1995 models 73362*, 73400*, 73401* x 3, 7 3420, 7 3440 *****
1996 models 73362*, 73363*, 73400*, 73401*, 73402*, 73403* *****
1997 models 73363*, 73402*, 73403* *****
