About This File
Service manual #492-4765
134 pages 32.9MB
This model is listed as a 240-Series @ Toro and they list this 260-Series manual for it.

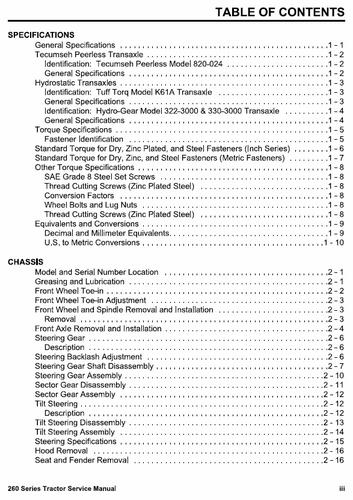

Section 1 - Index and Specifications
18 pages 3.02MB

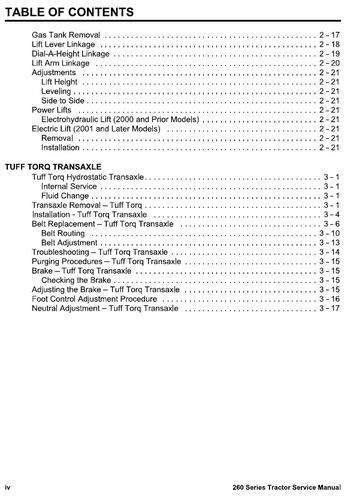

Section 2 - Chassis
26 pages 6.52MB
Section 3 - Tuff Torq Transaxle
23 pages 6.06MB

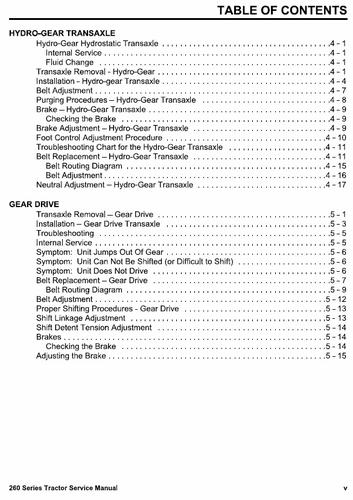

Section 4 - Hydro-Gear Transaxle
23 pages 6.04MB
Section 5 - Gear Drive Transaxle
20 pages 4.94MB

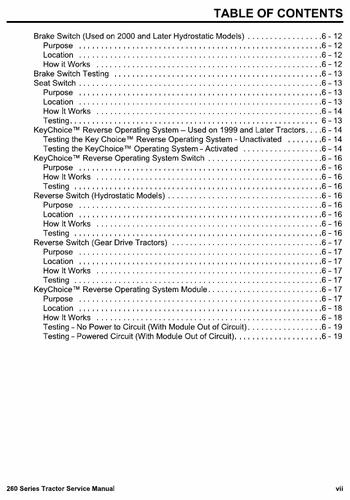

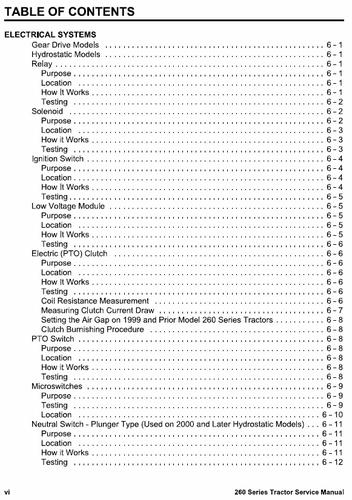

Section 6 - Electrical
24 pages 6.33MB

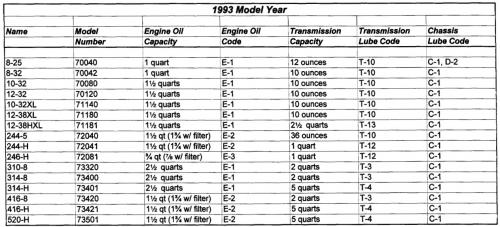

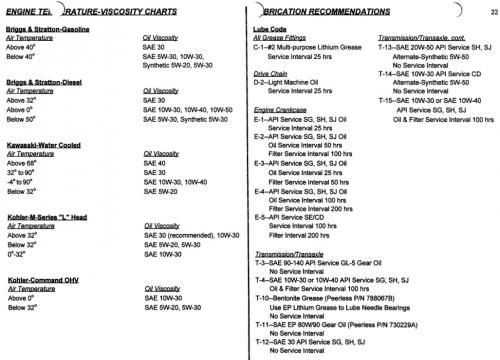

Lube chart SS
1993 246-H model 72081 Serial 3900001-3999999
1993 246-H model 72101 Serial 3900001-3999999
1993 246-He model 72101 Serial 3900001-3999999 - Export model
