About This File
IPL #810351R1
Service manual
Wiring
(Original 67 pages 60.57 MB)
67 pages 13.8MB
Dated 11/83

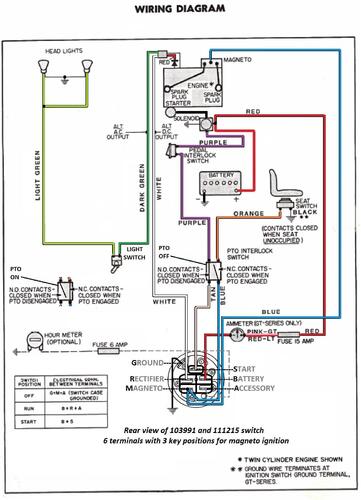

Wiring Color pdf
1 page 369KB
Work Horse Workhorse
1984 GT-1100 8-Speed model A1-11B801
Engine-11HP-B&S Model 252417, Type 0664-01
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
Engine Thrust Bearing Toro 106499 is discontinued, available as 6007-2RSNR
1984 GT-1600 Twin 8-Speed model A1-16B801
Engine-16HP-B&S Model 402437, Type 0694-01
Tractor drive belt 107939 replaced by 93-9809 - (HB x 83.5" or 5/8" x 83-1/2")
1984 GT-1800 Twin Auto model A1-18BE01
Engine-18HP-B&S Model 422437, Type 0663-01
Transmission drive belt 108502 - (HB/5L x 83" or 5/8" x 83")
What's New in Version 1.0.1
Released
IPL #810351R1
Service manual
Wiring
67 pages 62 MB
Dated 11/83
Work Horse Workhorse
1984 GT-1100 8-Speed model A1-11B801
Transmission drive belt 78-7100 replaced by7473 - HB x 81.9" or 5/8" x 81.9"
1984 GT-1600 Twin 8-Speed model A1-16B801
Tractor drive belt 107939 replaced by 93-9809 - (HB x 83.5" or 5/8" x 83-1/2")
1984 GT-1800 Twin Auto model A1-18BE01
Transmission drive belt 108502 - (HB/5L x 83" or 5/8" x 83")
