About This File

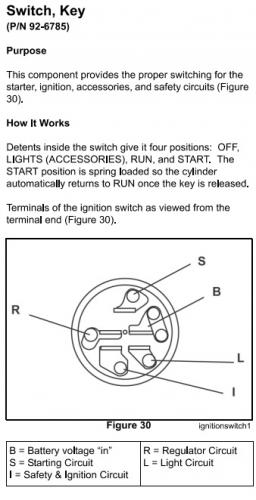

2 pages from Demystification Guide #492-4761
Switch rotated to place single terminal at the top
1 page 142KB
How to troubleshoot
101917 switch replaced by 92-6785
5-terminal 4-position key switch
This switch requires a starter solenoid
82-12o502* - Correct
82 -12o502 - Not correct
82-12o502 - Suspicious and not checked or determined yet
-------------------------------------------------------------------------------------------------------------------------------------------
Tractor Switch Ignition Battery ignition with electric start 101917
(Threads 5/8"-32) 5-terminal 4-position used 1972-1974
101917 5-terminal 4-position replaced by 92-6785
Switch 101917 used on
1970 model 1 -8755 is not correct. Shows up in the online lists because Toro included the D-Series parts list with the Lawn Ranger.
1972 models 1-0110*, 1-0301*, 1-0311*, 1-0320*, 1-0330*, 1-0401*, 1 -0402, 1-0410*, 1-0422*, 1-0423*
1973 models 1-0120*, 1-0130*, 1-0340*, 1-0350*, 1 -0355*, 1-0360*, 1-0365*, 1-0370*, 1-0430*, 1-0435*, 1-0440*, 1-0460*, 1-0465*, 1-0470*, 1-0475*, 1-0600*, 1-0601*, 1-0610*, 1-0620*
1973 model 1-0355 - One made in Belgium and located in Wales? Suspect 1973 12hp 8-Speed because of the 101917 switch listed - Not on the Belgium list
1974 model 1-0393*
1974 C-120 8-Speed model 1-0353 - Listed in PSB #301E for 1973-74. Suspect 1973 12hp 8-Speed is wrong ? - Most likely a 1974 model using a 3 key-position switch - 1974 on Belgium list
1974 C-120 8-Speed model 1-0354 - Listed in PSB #301E for 1973-74. Suspect 1973 12hp 8-Speed is wrong ? - Most likely a 1974 model using a 3 key-position switch - 1974 on Belgium list
--------------------------------------------------------------------------------------------------------------

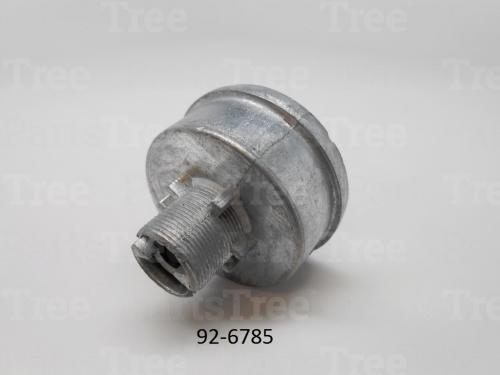

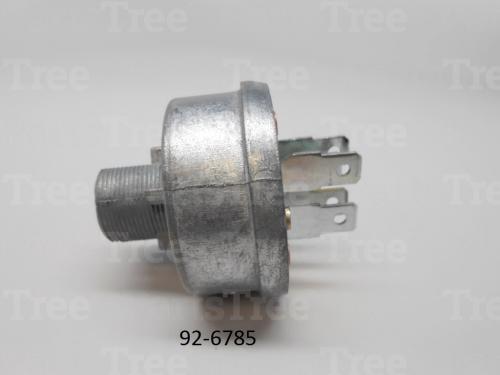

Tractor Switch Ignition Battery ignition with electric start 92-6785 ----------- (The switch key function is not correct in most manuals.)
(Threads ? Retained by 700919 nut) 5-terminal 4-position used 1994-2007
Replaces 101917 5-terminal 4-position
92-6785 5-terminal 4-position available 06/08 $31.47 from RCPW

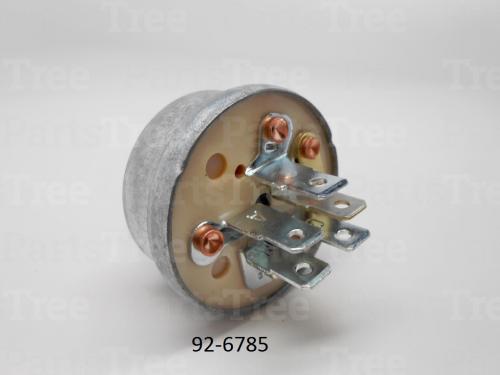

Battery style of ignition switch with "I" (eye) terminal
Also used on magneto ignition to control a kill relay.
Switch 92-6785 used on
1994 models 72042, 72043, 72062, 72063, 72083, 72103
1995 models 72042 x 2, 72043 x 2, 72062 x 2, 72063 x 2, 72084, 72103 x 2
1996 models 72042, 72043, 72045, 72046, 72062, 72064, 72084, 72085, 72102, 72104, 72110
1997 models 72045, 72046, 72064, 72085, 72102, 72104, 72110
1998 models 72045 x 2, 72046 x 2, 72064 x 2, 72085 x 2, 72102 x 2, 72104 x 2, 72110 x 2, 73428 x 2, 73448 x 2, 73470, 73540, 73541, 73545, 73546, 73550, 73551, 73560
1999 models 72047, 72048, 72070, 72086, 72105, 72106, 72115, 73429, 73449, 73471, 73542, 73547, 73552, 73561, 73570, 73580, 73590
2000 models 72049, 72050, 72071, 72087, 72107, 72108, 72116, 73429, 73449, 73471 x 2, 73542 x 2, 73547 x 2, 73552, 73561 x 3, 73561SEI, 73570, 73580, 73590,74570, 74590
2001 models 72051, 72052, 72072, 72087, 72107, 72108, 72116, 73429, 73449, 73471, 73542, 73547, 73561, 73580, 73590, 74570, 74590
2002 models 72051, 72052, 72072, 72087, 72107, 72108, 72116, 73450, 73542, 73561, 73570, 73590, 74570, 74590
2003 models 72107, 72116, 72200, 72201, 72202, 73450, 73542, 73561, 73570, 73590, 74570, 74590
2004 models 72200, 72201, 72202, 72211, 72212, 73450, 73542, 73561, 73590, 74570, 74571, 74590
2005 models 72200, 72201, 72202, 72211, 72212, 73450, 73561, 74570, 74571, 74590
2006 models 72211, 72212, 74570, 74571, 74591
2007 models 73450, 74573, 74582, 74592 x 2
2008 models 74573, 74582, 74592 x 2
2009 models 74573 x 2, 74582, 74590, 74592, 74593
2010 models 74573, 74582, 74593
2011 models 74582, 74593 x 2
