About This File
Operator manual #324-325
IPL
Wiring
16 pages 2.07MB

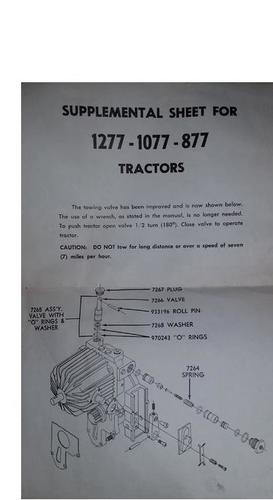

Change to tow valve
1 page 187KB
Wiring Color pdf
1 page 309KB
Long frame 45-1/2" wheelbase
Tractor drive belt 7927 and no longer available from Toro - (4L x 78.0" or 1/2" x 78")
Starter/generator belt
Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)

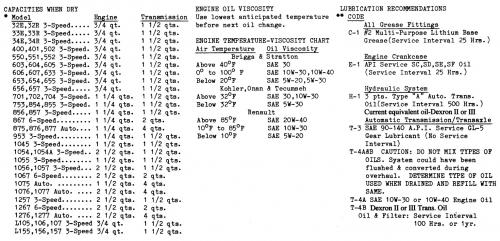

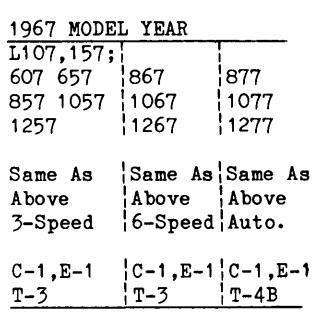

Lube chart SS
1967 model 1077 - Not listed at Toro. Used Kohler K241S-46333d
Uses the 5054 hydro transmission identified at Toro as 3100077
1967 serial numbers that have shown up for the 1077
277830
278083
291339
291603
291676
291895
291998
329545
------------------------------------------------------------------------------
Tractor drive belt 7927 and no longer available from Toro - (4L x 78.0" or 1/2" x 78")
Starter/generator belt
Kohler 10hp, 12hp - 235262 (7345 Gates .410" x 35.09" 36 degree) (25-7345 Napa .410" x 35.09" 36 degree)
Wheel Horse 1593 (3L x 34.4") - nla (Gates replacement 6735 3/8" x 35" 38 degree)
Details & Attachments
4 pages 120.08KB
1967 model 1277 - Uses the 5054 hydro transmission identified at Toro as 3100077

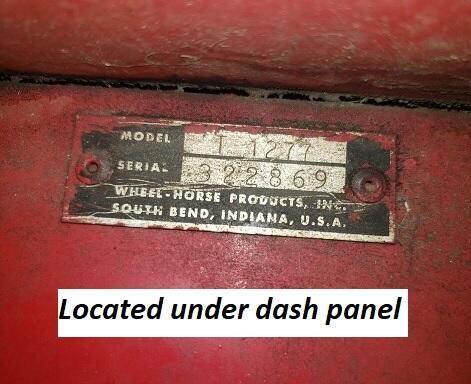

1967 serial numbers that have shown up for the 1277
273283
302095
302308
302373
302403
322563
322607
322729
322869
322882
329586
363188
