About This File
IPL #3318-634

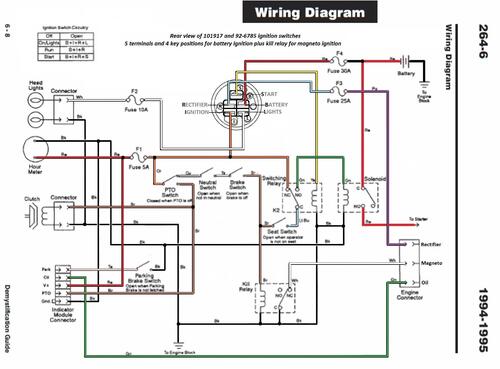

Wiring
104 pages 2.56MB
Does not include 266-H Twin model 72084 which has a carb fuel solenoid and shift style starter
6-speed models
Transmission drive belt 92-6719 replaced by 92-6955 (HA x 97.5" or 1/2" x 97.5")
Gates replacement 6898 and Napa 4L980W
1995 264-6 Late model 72042 Serial 5900797-5999999 - May be the same as Ford New Holland model LS25
1995 264-6 Late model 72062 Serial 5900228-5999999 - Export model 264-6e
Hydro models
Transmission drive belt 92-6718 replaced by 92-6954 (HA x 88.25" or 1/2" x 88.25")
Gates and Napa have a replacement in the Bladerunner series 6459BR
1995 264-H Late model 72043 Serial 5901476-5999999
1995 264-H Late model 72063 Serial 5900499-5999999 - Export model 264-He
1995 268-H Twin Late model 72103 Serial 5900601-5999999 - Export model 268-He - Has a carb fuel solenoid and shift style starter
