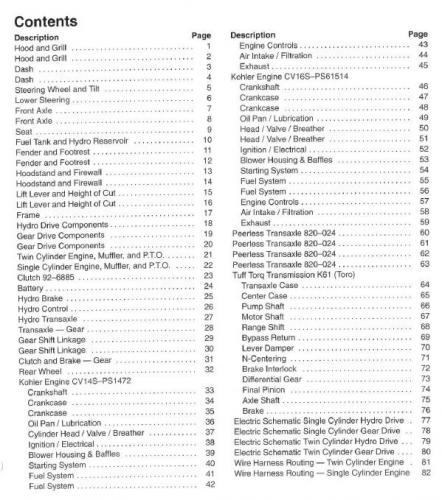

About This File
IPL #3316-737
Wiring
100 pages 21.01MB
Part 1
Cover to p20
26 pages 4.90MB
Part 2
p21 to p32
12 pages 2.59MB
Part 3 Kohler CV14S-1472 engine
p33 to p45
13 pages 2.78MB
Part 4 Kohler CV16S-61514 engine
p46 to p59
14 pages 3.01MB
Part 5 Peerless 820-024 transmission
p60 to p63
4 pages 1.10MB
Part 6 Tuff Torq K61 transmission
p64 to p76
13 pages 2.74MB

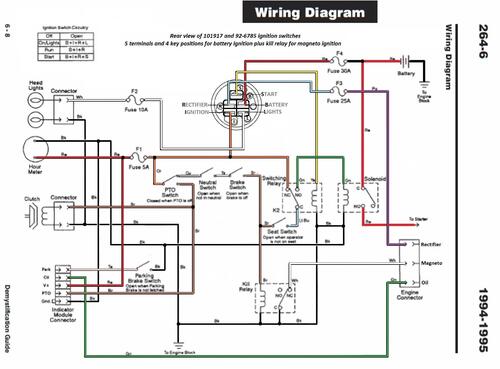

Part 7 Wiring
p77 to p82
6 pages 1.19MB
Part 8 Parts numerical index
p83 to p94
12 pages 2.70MB
6-speed models
Transmission drive belt 92-6719 replaced by 92-6955 (HA x 97.5" or 1/2" x 97.5")
Gates replacement 6898 and Napa 4L980W
1994 264-6 model 72042 Serial 4900001-4999999 - Uses Kohler CV14S-1472 engine and Peerless 820-024 transmission - May be the same as Ford New Holland model LS25
1994 264-6 model 72062 Serial 4900001-4999999 - Export model 264-6e - Uses Kohler CV14S-1472 engine and Peerless 820-024 transmission
Hydro models
Transmission drive belt 92-6718 replaced by 92-6954 (HA x 88.25" or 1/2" x 88.25")
Gates and Napa have a replacement in the Bladerunner series 6459BR
1994 264-H model 72043 Serial 4900001-4999999 - Uses Kohler CV14S-1472 engine and Tuff Torq K61A transmission
1994 264-H model 72063 Serial 4900001-4999999 - Export model 264-He - Uses Kohler CV14S-1472 engine and Tuff Torq K61A transmission
Twin wiring is different and many diagrams are incorrect
1994 266-H Twin model 72083 Serial 4900001-4999999 - Uses Kohler CV16S-61514 engine and Tuff Torq K61A transmission - Has carb fuel solenoid
1994 268-He Twin model 72103 Serial 4900001-4999999 - Export model 268-He Twin - Uses Kohler CV16S-61514 engine and Tuff Torq K61A transmission - Has carb fuel solenoid
