Tractor 1988 414-8 D&A TIPL SN.pdf

Sign in to follow this

gwest_ca

6 Screenshots

About This File

IPL from Toro Master Parts Viewer
50 pages 4.03MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Included the correct 110995 transmission IPL (Toro has the 110996 with 1" axles listed)



Magneto ignition

Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

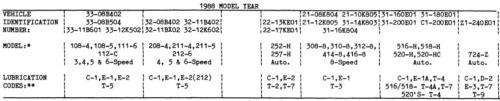

Lube chart SS


Details & Attachments
3 pages 117.58KB

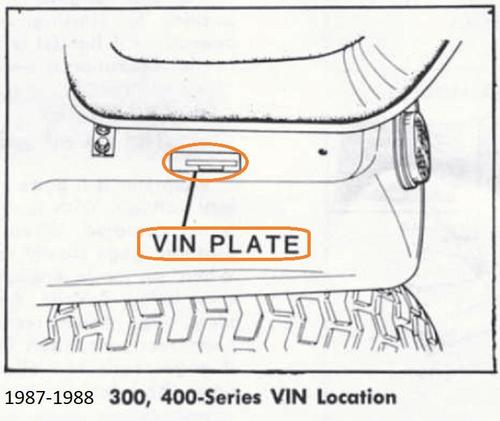

1988 414-8 model 31-14K803

1988 serial numbers that have shown up for the 31-14K803
27364
27488
27764
27881
28077
28195
28994

IPL from Toro Master Parts Viewer
43 pages 2.40MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Kohler parts list for M14S-601540

Original OM #810473R1
Original IPL #810547R1

Links

For engine service manual see

For transmission service manual see




×
×
