About This File
Operator manual
Wiring
28 pages 6.72MB
IPL
40 pages 6.8MB
Includes
Kohler engine IPL MV16S-56511
Blowout Guard model 60-9030
Blowout Guard model 68-3590
Deluxe Seat model 68-3800
Mulcher kit model 30752
Mulcher kit model 30700

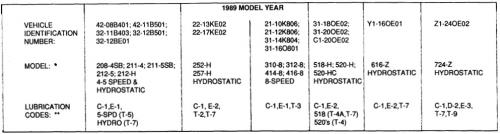

Lube chart SS
Details & Attachments
2 pages 111.79KB
44" SD mower model 55660
Mower drive belt 57-6990 (HA x 82.4" or Gates 6882 1/2" x 82" )
Mower spindle belt 54-2750 (HB x 70" or Gates 6838BR 5/8" x 70.25")
52" SD mower model 55670
Mower drive belt 68-2960 (HB x 72.44" or 5/8" x 72.44")
Mower spindle belt 27-1160 (AA x 103.8" or Gates 6571BR 1/2" x 103.75")
Transmission drive belt 68-0080 - (HA x 45.0" or 1/2" x 45")
1989 HMR-1600 RER model 55620 Serial 9000001-9999999
