About This File
IPL from Toro Master Parts Viewer
34 pages 3.56MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

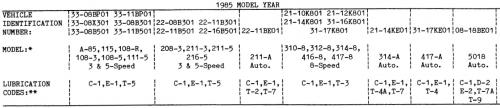

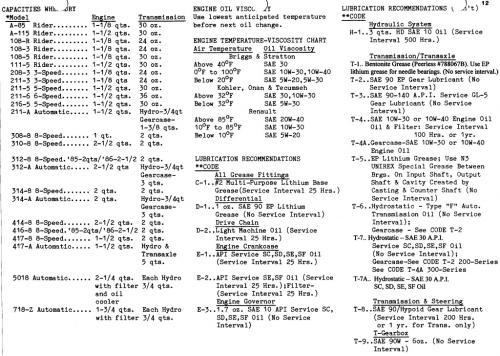

Lube chart SS
Details & Attachments
3 pages 116.82KB
1985 417-8 model 31-17K801
Note - The transmission pages may not be correct. It shows 4 pinion gears.
This should be the correct ipl
