About This File
IPL from Toro Master Parts Viewer
34 pages 3.56MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Original IPL #810386R1
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

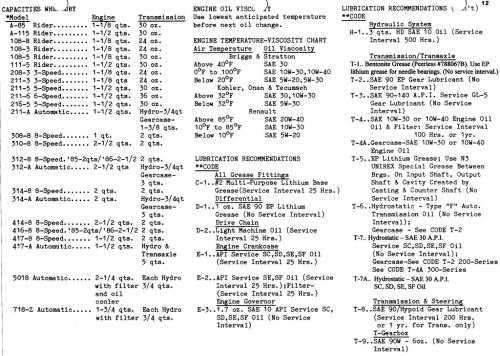

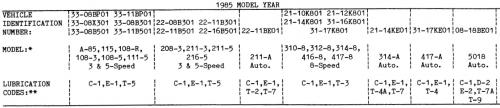

Lube chart SS
Details & Attachments
3 pages 117.29KB
1985 416-8 model 31-16K801

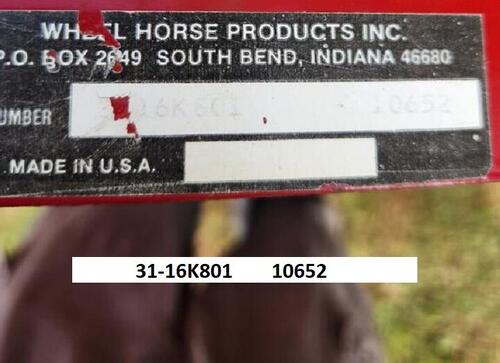

1985 serial numbers that have shown up for the 31-16K801
10171
10243
10652
10752
11505
Uses Kohler K341S-71371 with 3 amp unregulated charging system
Note - The transmission pages may not be correct. It shows 4 pinion gears.
This should be the correct transmission ipl
