About This File

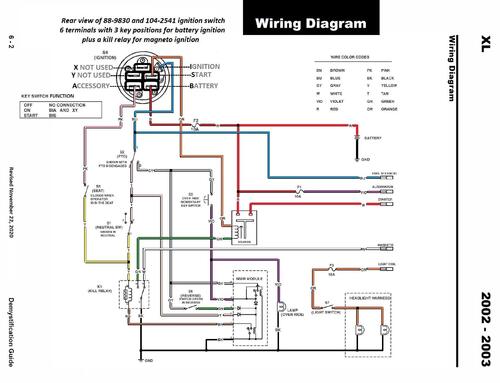

Detailed wiring from the Demystification Guide #492-4761
6 pages 1.5MB
p6-1 to p6-6

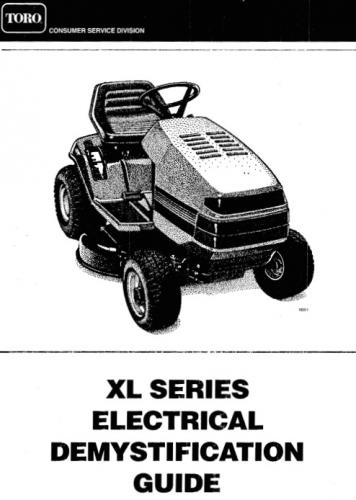

Detailed wiring from the Demystification Guide #492-3301
9 pages 295.21KB
Model years covered by this manual are a guess
2003 12-32XL Lawn Tractor model 71199 Serial 230000001-230999999
2003 13-32XL Lawn Tractor model 71209 Recycler Serial 230000001-230999999 - Export model 13-32XLe
2003 14-38HXL Lawn Tractor model 71245 Recycler Serial 230000001-230999999 - Export model 14-38HXLe
2003 16-38XL Lawn Tractor model 71223 Recycler Serial 230000001-230999999
2003 16-38HXL Lawn Tractor model 71227 Recycler Serial 230000001-230999999
2003 16-38HXL Lawn Tractor model 71242 Recycler Serial 230000001-230999999 - Export model 16-38HXLe
2003 17-44HXL Lawn Tractor model 71228 Recycler Serial 230000001-230999999
2003 17-44HXL Indy Special Edition Lawn Tractor model 71233 Recycler Serial 230000001-230999999
2003 17-44HXL Lawn Tractor model 71283 Recycler Serial 230000001-230999999 - Export model 17-44HXLe
