About This File
IPL from Toro Master Parts Viewer
54 pages 3.59MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Original OM #810343R1
Original IPL #810315R1
It is rumoured that 501 total units were built 1982-1983 and 155 units built 1984
Transmission drive belt 109748 - (HB/5L x 87.25" or 5/8" x 87-1/4")

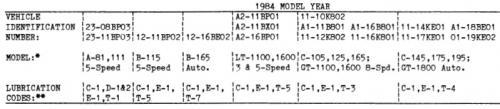

Lube chart SS
Details & Attachments
3 pages 117.02KB
1984 C-195 Twin Automatic model 01-19KE02
1984 serial numbers that have shown up for the 01-19KE02
28089
28113
Links
For Kohler service manual see
For Kohler Series I illustrated parts manual see
For Eaton hydro service manual see
For Hydraulic service manual see
For Hydraulic lift service manual #492-4208 see
