About This File
IPL from Toro Master Parts Viewer
44 pages 3.06MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Original OM #810343R1
Original IPL #810349R1

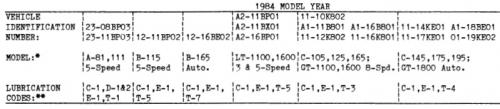

Lube chart SS
Details & Attachments
3 pages 118.14KB
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
1984 C-165 8-Speed model 11-16K801
1984 serial numbers that have shown up for the 11-16K801
21569
28568
28603
28775
28839
Links
For engine operator manual see
For transmission service manual see
Some models use 8048 transmission carrier bearing and 8052 inner race.
For product service bulletin see
