Tractor 1984 C-105 8-Speed D&A TIPL SN.pdf

Sign in to follow this

gwest_ca

4 Screenshots

About This File

IPL from Toro Master Parts Viewer
44 pages 3.06MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Original OM #810343R1
Original IPL #810349R1

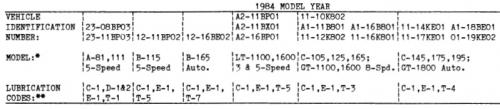

Lube chart SS


Details & Attachments
3 pages 116.39KB



Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"

1984 C-105 8-Speed model 11-10K802

28142 - Build date 1983 3290 October 17 Monday
28484 - Build date 1983 3308 November 04 Friday

Links

For engine IPL see

For engine operator manual see

For transmission service manual see



Some models use 8048 transmission carrier bearing and 8052 inner race.

For product service bulletin see




×
×
