About This File
IPL from Toro Master Parts Viewer
36 pages 2.19MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Includes standard equipment 32" SD mower model 05-32XS02 IPL - Requires 108503 drive belt
Transmission drive belt 9430 - (4L x 36.31" or 1/2" x 36.31")

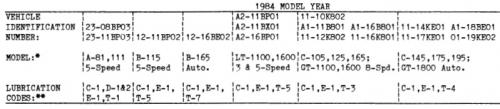

Lube chart SS
Details & Attachments
2 pages 112.15KB
1984 A-81 5-Speed Rear Engine Rider model 23-08BP03
Original tractor OM #810311R1
Original tractor IPL #810364R1
Original mower OM #810354R1
Links
For engine OM and IPL see
IPL from Toro Master Parts Viewer
37 pages 2.06MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round) - From blade chart for 05-36YR01 rear discharge 36" deck
Details & Attachments
2 pages 113.14KB
1984 A-81 5-Speed Rear Engine Rider model 23-08BX01 - List as 1983 only @ Toro and 1983-84 in PSB #301e
Original tractor OM #810311R1
Original tractor IPL #810325R1
Links
For engine OM and IPL see
For electrical service manual see
For Peerless transmission 724A IPL see
For Stewart differential patent see
