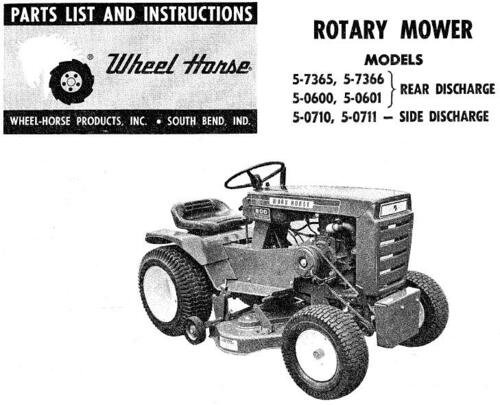

Mower Rotary 36in RD 1971 5-0600 CW OM IPL SN.pdf

Sign in to follow this

admin

3 Screenshots

About This File

Operator manual #A-5122
IPL
4 pages 1.13MB
Dated 7-69 Revised 11-9-70

CW spindle rotation
Fits 10hp and 12hp long frame tractors
(Fits CG-7, CG-8 Left side discharge from the Attachment interchange is wrong)


Trivia - 8391 center pulley replaced by 105131 replaced by 106113 plus 920039 washer

920039 washer replaced by 3256-4 washer



Drive belt 9360 (1/2" x 95.63") [1/2" x 97" in ipl looks wrong]
Spindle belt 8411 (1/2" x 76.94")

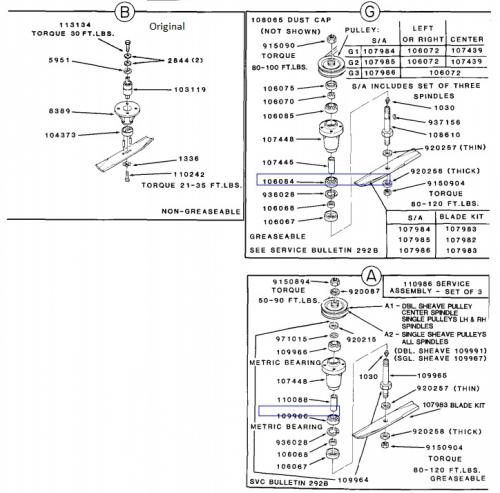

Mower spindle assemblies could be B, A1, G2 or Z

For A1 see service bulletin 292B

For G2 see service bulletin 292B



9187 center blade and 9188 left and right blades replaced by 8969 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
8969 blade set available again from Toro June 4, 2019


Mower Rotary 1971 36in RD model 5-0600

1971 serial numbers that have shown up for the 5-0600
745096








×
×
