Mower Rotary 48in SD 1981-1983 05-48MS02 C OM IPL SN.pdf

Sign in to follow this

admin

5 Screenshots

About This File

Operator manual #810306R1 or 810306 R1
7 pages 1.29MB

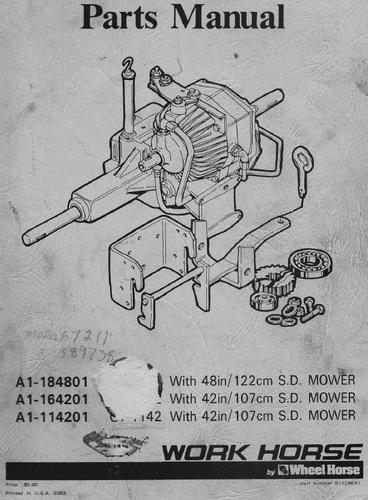

Illustrated parts list removed from Work Horse tractor ipl #810286R1

7 pages 7.8MB

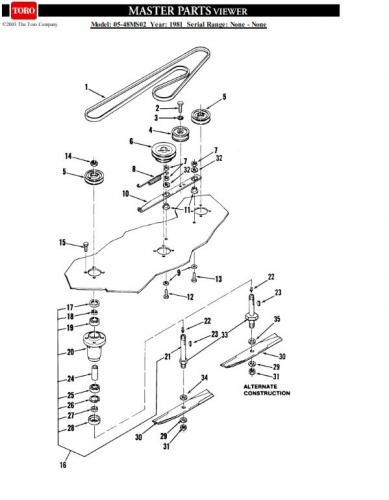

Illustrated parts list from Toro Master Parts Viewer
7 pages 388.11KB



Fits C-Series tractors

Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 1594 (1/2" x 107.21")

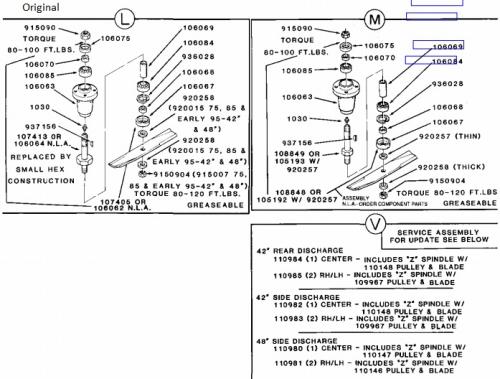

Mower spindle assemblies could be L, M, V or Z

For V see service bulletin 292B



106078 blade replaced by 106637 3-blade set (3/4" round hole)

Mower Rotary 1981 48in SD model 05-48MS02
1981 serial numbers that have shown up for the 05-48MS02
033989 - Build date 1981 1173 June 22 Wednesday
039413 - Build date 076 looks wrong

041688
041789

Mower Rotary 1982 48in SD model 05-48MS02

Mower Rotary 1983 48in SD model 05-48MS02
