About This File
Operator manual #3315-837 for model 71180
Wiring
48 pages 1.7MB

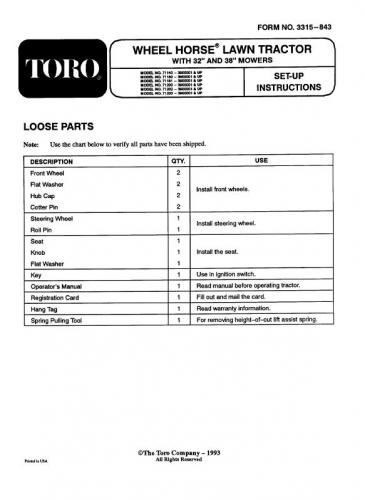

Setup #3315-843
4 pages 183KB

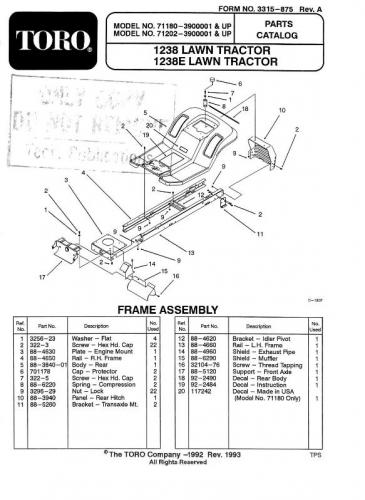

IPL #3315-875
Wiring
40 pages 8.7MB
Includes
B&S IPL for 283707-0156-01
Peerless IPL for 915-020
Transmission drive belt 88-6240 - (4L x 95.2" or 1/2" x 95.2")
Mower drive and spindle belt 88-6250 (1/2" x 87.20")

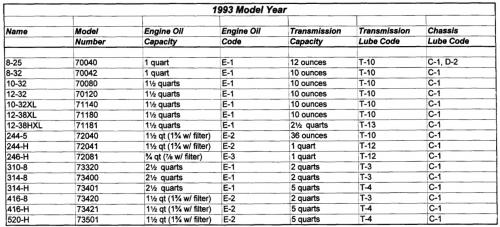

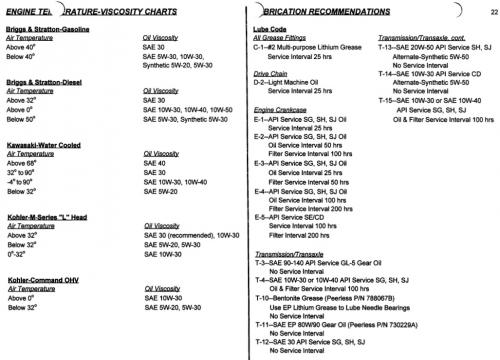

Lube chart SS
Details & Attachments
2 pages 114.31KB
1993 12-38XL Lawn Tractor model 71180 Recycler Serial 3900001-3999999
--------------------------------------------------------------------------------------------------------

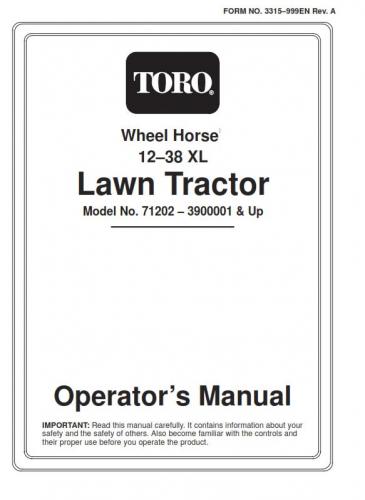

Operator manual #3315-999ENRevA or 3315-999EN RevA for model 71202
Wiring
46 pages 584KB
IPL #3315-875
Wiring
40 pages 8.7MB
Includes
B&S IPL for 286707-0452-01
Peerless IPL for 915-020
Mower drive and spindle belt 88-6250 (1/2" x 87.20")
Details & Attachments
2 pages 110.64KB
1993 12-38XL Lawn Tractor model 71202 Serial 3900001-3999999 - Export model
1993 12-38XLe Lawn Tractor model 71202 Serial 3900001-3999999 - Export model
