Tractor 1993 10-32 RER Recycler D&A OM IPL Wiring sn.pdf

Sign in to follow this

gwest_ca

5 Screenshots

About This File

Operator manual #3315-326
Wiring
36 pages 2.5MB

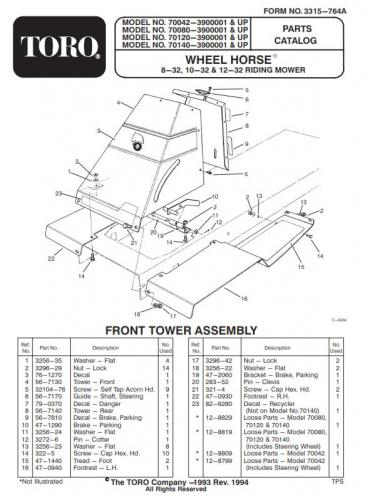

IPL #3315-764RevA or 3315-764 RevA
Wiring
40 pages 991KB


Transmission drive belt 92-0870 - (HA x 31.0" or 1/2" x 31")

Mower drive and spindle belt 92-0875 (1/2" x 58" @ Gates) [Belt 47-1420 (1/2" x 65.56") in belt chart is wrong]

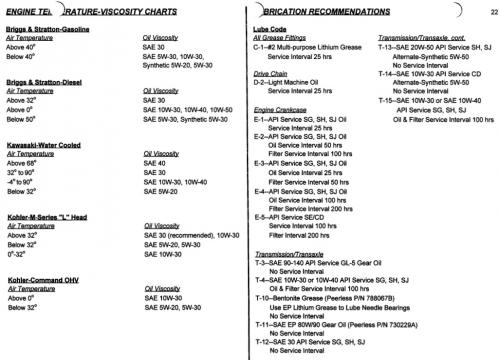

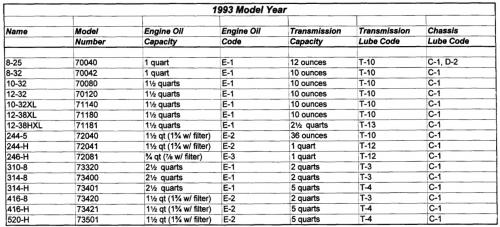

Lube chart SS


Details & Attachments
2 pages 113.31KB

1993 10-32 Rear Engine Rider Recycler model 70080 Serial 3900001-3999999




×
×
