About This File

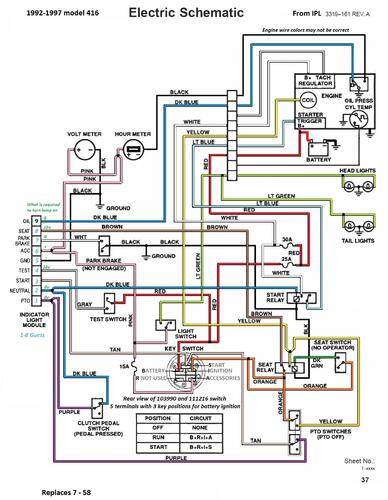

Detailed wiring from the Demystification Guide #492-4509 Color pdf
4 pages 1.5MB

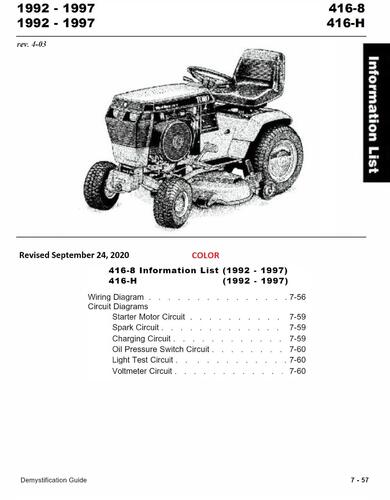

Pages p7-57 to p7-60
Note - The ignition circuit in the original Guide incorrectly shows point and condenser ignition on page 7-59
1997 416-8 model 73422 Serial 7900001-7999999
1997 416-8 model 73441 Serial 7900001-7999999 - Export model 416-8e
