Tractor 1995 416-8 Wiring Detailed Rev.pdf

Sign in to follow this

gwest_ca

2 Screenshots

About This File

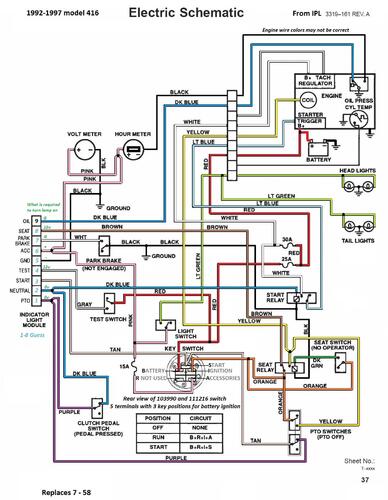

Detailed wiring from the Demystification Guide #492-4509 Color pdf

4 pages 1.5MB

Pages p7-57 to p7-60



Note - The ignition circuit in the original Guide incorrectly shows point and condenser ignition on page 7-59



1995 416-8 model 73420 Serial 5900001-5000614

1995 416-8 model 73420 Serial 5900615-5900714

1995 416-8 model 73420 Serial 5900715-5999999



1995 416-8 model 73440 Serial 5900001-5900222 Export model 416-8e

1995 416-8 model 73440 Serial 5900223-5999999 Export model 416-8e




×
×
