Tractor 1994 416-8 Wiring Detailed Rev.pdf

Sign in to follow this

gwest_ca

2 Screenshots

About This File

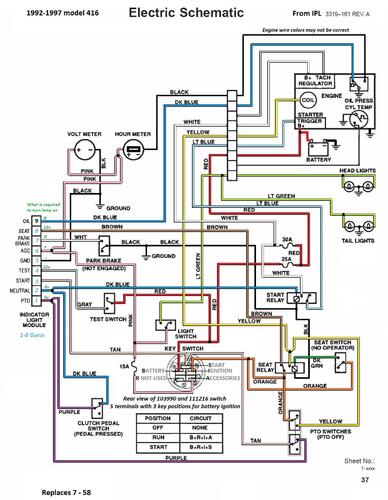

Detailed wiring from the Demystification Guide #492-4509 Color pdf

4 pages 1.5MB

Pages p7-57 to p7-60



Note - The ignition circuit in the original Guide incorrectly shows point and condenser ignition on page 7-59



1994 416-8 model 73420 Serial 4900001-4999999



1994 416-8 model 73440 Serial 4900001-4999999 Export model 416-8e






×
×
