About This File

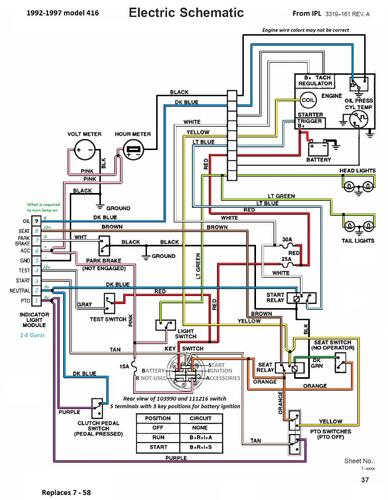

Detailed wiring from the Demystification Guide #492-4509 Color pdf
4 pages 1.5MB
Pages p7-57 to p7-60
Note - The ignition circuit in the original Guide incorrectly shows point and condenser ignition on page 7-59
1993 416-8 model 73420 Serial 3900001-3999999
1993 416-8 model 73440 Serial 3900001-3999999 - Export model 416-8e
