Tractor 1992 416-H Wiring Detailed Rev.pdf

Sign in to follow this

gwest_ca

2 Screenshots

About This File

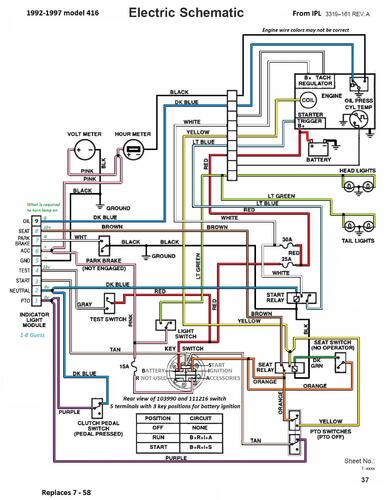

Detailed wiring from the Demystification Guide #492-4509 Color pdf

4 pages 1.5MB

Pages p7-57 to p7-60



Note - The ignition circuit in the original Guide incorrectly shows point and condenser ignition on page 7-59



1992 416-H model 51-16OE02 Serial 2000001-2999999




×
×
