About This File
Illustrated parts list #3314-853
The ipl's posted online are not correct. This is an original and properly identifies the 8-speed transmissions used. Mistakes on the cover of this manual may be the start of the confusion.
This manual does not include the hydro transmission or transaxle ????
112 pages 3.27MB

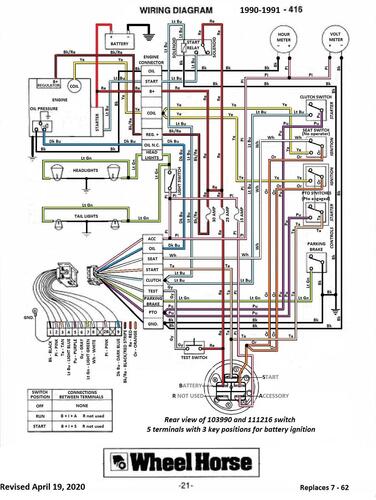

Wiring Color pdf
1 page 556KB
Transmission drive belt 107939 replaced by 93-9809 - (HB x 83.5" or 5/8" x 83-1/2")
1991 416-8 model 31-16O803 - Serial 1000001-1099999
-------------------------------------------------------------------------------------------------------------------------
Transmission drive belt 112801 replaced by 114895 - (HB x 82.95 or 5/8" x 82.95")
1991 416-H model 51-16OE01 - Serial 1000001-1099999
