Tractor 1990 416-8 D&A TIPL SN.pdf

Sign in to follow this

gwest_ca

5 Screenshots

About This File

IPL Wiring from Toro Master Parts Viewer - Tractor
47 pages 4.00MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

Original IPL #810726R1
Original operator manual #810514R1

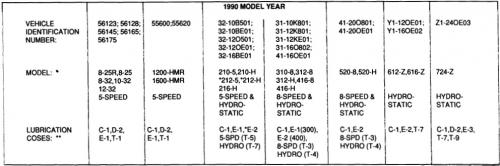

Lube chart SS


Details & Attachments
3 pages 122.01KB



IPL Wiring from Toro Master Parts Viewer - Engine
24 pages 1.87MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Onan P216G-I/10976C ipl



Tractor drive belt  107939 replaced by 93-9809 - (HB x 83.5" or 5/8" x 83-1/2")


1990 416-8 model 31-16O802
1990 serial numbers that have shown up for the 31-16O802
0010681 - Build date 1989 9307 November 03 Friday
0010710
0010958 - Build date 1990 0022 January 22 Tuesday

0011257
0012072
0012151

0012307





×
×
